Wang 21:34 on 2018-02-27 Permalink | Reply
Tags: BigData ( 34 ), ETL, Hadoop ( 14 ), HBase ( 5 ), Hive ( 15 ), NoSQL

Import data from hive to hbase

Recently I need restore data from hive to hbase, I found there are no direct ways to do this by tools like sqoop, so I converted it myself.

1.create hbase namespace and table which contained one columnfamily named basic

create_namespace 'gbif'
create 'gbif.gbif_0004998', 'basic'

1.create intermediate hive table which following hive/hbase tables’s structure

CREATE EXTERNAL TABLE intermediate.hbase_gbif_0004998 (gbifid string, datasetkey string, occurrenceid string, kingdom string, phylum string, class string, orders string, family string, genus string, species string, infraspecificepithet string, taxonrank string, scientificname string, countrycode string, locality string, publishingorgkey string, decimallatitude string, decimallongitude string, coordinateuncertaintyinmeters string, coordinateprecision string, elevation string, elevationaccuracy string, depth string, depthaccuracy string, eventdate string, day string, month string, year string, taxonkey string, specieskey string, basisofrecord string, institutioncode string, collectioncode string, catalognumber string, recordnumber string, identifiedby string, license string, rightsholder string, recordedby string, typestatus string, establishmentmeans string, lastinterpreted string, mediatype string, issue string)
STORED BY 'org.apache.hadoop.hive.hbase.HBaseStorageHandler'
WITH SERDEPROPERTIES ("hbase.columns.mapping" = ":key,basic:datasetkey,basic:occurrenceid,basic:kingdom,basic:phylum,basic:class,basic:orders,basic:family,basic:genus,basic:species,basic:infraspecificepithet,basic:taxonrank,basic:scientificname,basic:countrycode,basic:locality,basic:publishingorgkey,basic:decimallatitude,basic:decimallongitude,basic:coordinateuncertaintyinmeters,basic:coordinateprecision,basic:elevation,basic:elevationaccuracy,basic:depth,basic:depthaccuracy,basic:eventdate,basic:day,basic:month,basic:year,basic:taxonkey,basic:specieskey,basic:basisofrecord,basic:institutioncode,basic:collectioncode,basic:catalognumber,basic:recordnumber,basic:identifiedby,basic:license,basic:rightsholder,basic:recordedby,basic:typestatus,basic:establishmentmeans,basic:lastinterpreted,basic:mediatype,basic:issue")
TBLPROPERTIES("hbase.table.name" = "gbif.gbif_0004998");

3.insert data into intermediate hive table

insert overwrite table intermediate.hbase_gbif_0004998 select * from gbif.gbif_0004998;

4.get intermediate hive table’s hdfs path

desc formatted intermediate.hbase_gbif_0004998;

#5.import into hbase from hdfs

#hbase --config config_dir org.apache.hadoop.hbase.mapreduce.LoadIncrementalHFiles
#hdfs://localhost:9000/user/hive/warehouse/intermediate.db/hbase_gbif_0004998
gbif.gbif_0004998

6.check hbase’s data

count 'gbif.gbif_0004998'

...
 ...
 Current count: 326000, row: 986217061
 Current count: 327000, row: 991771339
 327316 row(s) in 13.6890 seconds

=> 327316

7.get data from hbase table

hbase(main):008:0> get 'gbif.gbif_0004998', '1019778874'
COLUMN CELL
basic:basisofrecord timestamp=1519452831179, value=LIVING_SPECIMEN
basic:catalognumber timestamp=1519452831179, value=A0011
basic:class timestamp=1519452831179, value=Liliopsida
basic:collectioncode timestamp=1519452831179, value=ArxC3xA1ceas
basic:coordinateprecision timestamp=1519452831179, value=
basic:coordinateuncertaintyinmeters timestamp=1519452831179, value=
basic:countrycode timestamp=1519452831179, value=CO
basic:datasetkey timestamp=1519452831179, value=fd5ae2bb-6ee6-4e5c-8428-6284fa385f9a
basic:day timestamp=1519452831179, value=23
basic:decimallatitude timestamp=1519452831179, value=
basic:decimallongitude timestamp=1519452831179, value=
basic:depth timestamp=1519452831179, value=
basic:depthaccuracy timestamp=1519452831179, value=
basic:elevation timestamp=1519452831179, value=
basic:elevationaccuracy timestamp=1519452831179, value=
basic:establishmentmeans timestamp=1519452831179, value=
basic:eventdate timestamp=1519452831179, value=2007-08-23T02:00Z
basic:family timestamp=1519452831179, value=Araceae
basic:genus timestamp=1519452831179, value=Anthurium
basic:identifiedby timestamp=1519452831179, value=
basic:infraspecificepithet timestamp=1519452831179, value=
basic:institutioncode timestamp=1519452831179, value=CorporacixC3xB3n San Jorge
basic:issue timestamp=1519452831179, value=
basic:kingdom timestamp=1519452831179, value=Plantae
basic:lastinterpreted timestamp=1519452831179, value=2018-02-03T23:09Z
basic:license timestamp=1519452831179, value=CC0_1_0
basic:locality timestamp=1519452831179, value=
basic:mediatype timestamp=1519452831179, value=
basic:month timestamp=1519452831179, value=8
basic:occurrenceid timestamp=1519452831179, value=JBSJ:Araceas:A0011
basic:orders timestamp=1519452831179, value=Alismatales
basic:phylum timestamp=1519452831179, value=Tracheophyta
basic:publishingorgkey timestamp=1519452831179, value=1904954c-81e7-4254-9778-ae3deed93de6
basic:recordedby timestamp=1519452831179, value=Oyuela G.
basic:recordnumber timestamp=1519452831179, value=
basic:rightsholder timestamp=1519452831179, value=CorporacixC3xB3n San Jorge
basic:scientificname timestamp=1519452831179, value=Anthurium cabrerense Engl.
basic:species timestamp=1519452831179, value=Anthurium cabrerense
basic:specieskey timestamp=1519452831179, value=2872557
basic:taxonkey timestamp=1519452831179, value=2872557
basic:taxonrank timestamp=1519452831179, value=SPECIES
basic:typestatus timestamp=1519452831179, value=
basic:year timestamp=1519452831179, value=2007

Wang 19:44 on 2018-02-25 Permalink | Reply
Tags: BigData ( 34 ), Hive ( 15 ), Performance ( 28 ), Tez ( 6 )

[Performance Test] MR vs Tez

I tested performance about MR and Tez on my laptop, it’s single server, so it’s not very accurate.

I create two tables to do the test which contains the datasets I downloaded from GBIF.

gbif_0004998: 327,316 rows

gbif_0004991: 6,914,665 rows

1.test gbif_0004998

create by MR

hive> set hive.execution.engine=mr;
Hive-on-MR is deprecated in Hive 2 and may no be available in the future versions. Consider using a different execution engine (i.e. spark, tez) or using Hive 1.X releases.
hive> CREATE TABLE gbif.gbif_0004998
> STORED AS ORC
> TBLPROPERTIES("orc.compress"="snappy")
> AS SELECT * FROM gbif.gbif_0004998_ori;
WARNING: Hive-on-MR is deprecated in Hive 2 and may not be available in the future versions. Consider using a different execution engine (i.e. spark, tez) or using Hive 1.X releases.
Query ID = wanghongmeng_20180224190744_f3fb257a-829e-40c2-974b-5abeb3d88693
Total jobs = 1
Launching Job 1 out of 1
Number of reduce tasks is set to 0 since there's no reduce operator
Starting Job = job_1519462946874_0007, Tracking URL = http://localhost:8088/proxy/application_1519462946874_0007/
Kill Command = /usr/local/Cellar/hadoop/2.8.2/bin/hadoop job -kill job_1519462946874_0007
Hadoop job information for Stage-1: number of mappers: 1; number of reducers: 0
2018-02-24 19:07:53,043 Stage-1 map = 0%, reduce = 0%
2018-02-24 19:08:10,204 Stage-1 map = 100%, reduce = 0%
Ended Job = job_1519462946874_0007
Stage-4 is selected by condition resolver.
Stage-3 is filtered out by condition resolver.
Stage-5 is filtered out by condition resolver.
Moving data to directory hdfs://localhost:9000/user/hive/warehouse/gbif.db/.hive-staging_hive_2018-02-24_19-07-44_762_5371659277950436672-1/-ext-10002
Moving data to directory hdfs://localhost:9000/user/hive/warehouse/gbif.db/gbif_0004998
MapReduce Jobs Launched:
Stage-Stage-1: Map: 1 HDFS Read: 130582415 HDFS Write: 13510429 SUCCESS
Total MapReduce CPU Time Spent: 0 msec
OK
Time taken: 28.28 seconds

create by Tez

hive> set hive.execution.engine=tez;
hive> CREATE TABLE gbif.gbif_0004998
> STORED AS ORC
> TBLPROPERTIES("orc.compress"="snappy")
> AS SELECT * FROM gbif.gbif_0004998_ori;
Query ID = wanghongmeng_20180224193755_bd7fda12-bfd7-4abf-9c3e-0f90b9b58607
Total jobs = 1
Launching Job 1 out of 1
Status: Running (Executing on YARN cluster with App id application_1519462946874_0013)

----------------------------------------------------------------------------------------------
VERTICES MODE STATUS TOTAL COMPLETED RUNNING PENDING FAILED KILLED
----------------------------------------------------------------------------------------------
Map 1 .......... container SUCCEEDED 1 1 0 0 0 0
----------------------------------------------------------------------------------------------
VERTICES: 01/01 [==========================>>] 100% ELAPSED TIME: 15.65 s
----------------------------------------------------------------------------------------------
Moving data to directory hdfs://localhost:9000/user/hive/warehouse/gbif.db/gbif_0004998
OK
gbif_0004998_ori.gbifid gbif_0004998_ori.datasetkey gbif_0004998_ori.occurrenceid gbif_0004998_ori.kingdom gbif_0004998_ori.phylum gbif_0004998_ori.class gbif_0004998_ori.orders gbif_0004998_ori.family gbif_0004998_ori.genus gbif_0004998_ori.species gbif_0004998_ori.infraspecificepithet gbif_0004998_ori.taxonrank gbif_0004998_ori.scientificname gbif_0004998_ori.countrycode gbif_0004998_ori.locality gbif_0004998_ori.publishingorgkey gbif_0004998_ori.decimallatitude gbif_0004998_ori.decimallongitude gbif_0004998_ori.coordinateuncertaintyinmeters gbif_0004998_ori.coordinateprecision gbif_0004998_ori.elevation gbif_0004998_ori.elevationaccuracy gbif_0004998_ori.depth gbif_0004998_ori.depthaccuracy gbif_0004998_ori.eventdate gbif_0004998_ori.day gbif_0004998_ori.month gbif_0004998_ori.year gbif_0004998_ori.taxonkey gbif_0004998_ori.specieskey gbif_0004998_ori.basisofrecord gbif_0004998_ori.institutioncode gbif_0004998_ori.collectioncode gbif_0004998_ori.catalognumber gbif_0004998_ori.recordnumber gbif_0004998_ori.identifiedby gbif_0004998_ori.license gbif_0004998_ori.rightsholder gbif_0004998_ori.recordedby gbif_0004998_ori.typestatus gbif_0004998_ori.establishmentmeans gbif_0004998_ori.lastinterpreted gbif_0004998_ori.mediatype gbif_0004998_ori.issue
Time taken: 16.631 seconds

query by MR

hive> set hive.execution.engine=mr;
Hive-on-MR is deprecated in Hive 2 and may not be available in the future versions. Consider using a different execution engine (i.e. spark, tez) or using Hive 1.X releases.
hive> select count(*) as total from gbif_0004998 where mediatype = 'STILLIMAGE';
WARNING: Hive-on-MR is deprecated in Hive 2 and may not be available in the future versions. Consider using a different execution engine (i.e. spark, tez) or using Hive 1.X releases.
Query ID = wanghongmeng_20180224194412_0c9a74e1-b01e-4b92-8db4-f31522d44bd9
Total jobs = 1
Launching Job 1 out of 1
Number of reduce tasks determined at compile time: 1
In order to change the average load for a reducer (in bytes):
set hive.exec.reducers.bytes.per.reducer=<number>
In order to limit the maximum number of reducers:
set hive.exec.reducers.max=<number>
In order to set a constant number of reducers:
set mapreduce.job.reduces=<number>
Starting Job = job_1519462946874_0016, Tracking URL = http://localhost:8088/proxy/application_1519462946874_0016/
Kill Command = /usr/local/Cellar/hadoop/2.8.2/bin/hadoop job -kill job_1519462946874_0016
Hadoop job information for Stage-1: number of mappers: 1; number of reducers: 1
2018-02-24 19:44:24,034 Stage-1 map = 0%, reduce = 0%
2018-02-24 19:44:33,661 Stage-1 map = 100%, reduce = 0%
2018-02-24 19:44:40,063 Stage-1 map = 100%, reduce = 100%
Ended Job = job_1519462946874_0016
MapReduce Jobs Launched:
Stage-Stage-1: Map: 1 Reduce: 1 HDFS Read: 30539 HDFS Write: 105 SUCCESS
Total MapReduce CPU Time Spent: 0 msec
OK
total
28918
Time taken: 28.529 seconds, Fetched: 1 row(s)

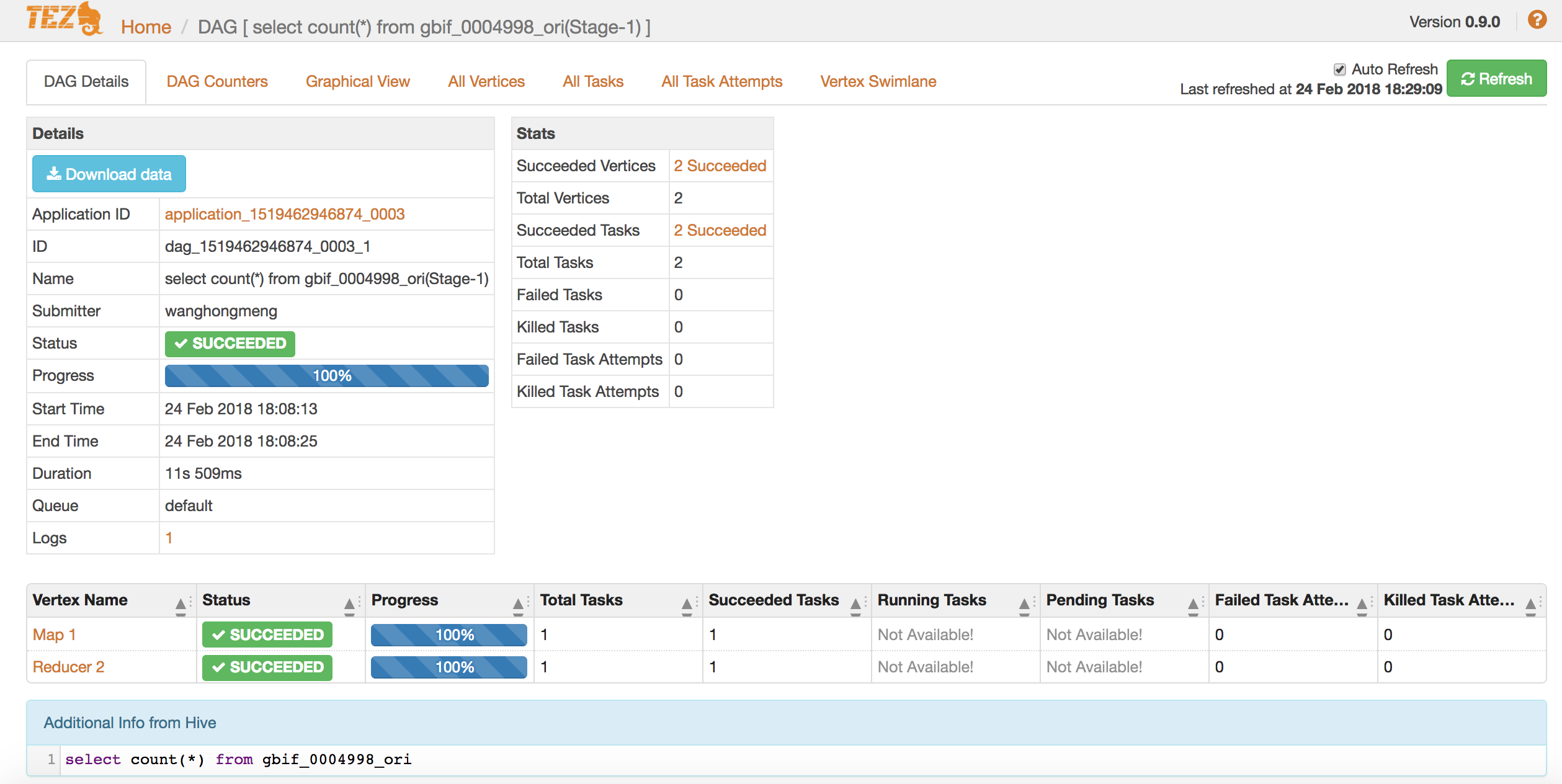

query by Tez

hive> set hive.execution.engine=tez;
hive> select count(*) from gbif_0004998 where mediatype = 'STILLIMAGE';
Query ID = wanghongmeng_20180224193902_f03b627e-e091-4632-87e5-0d8af6484032
Total jobs = 1
Launching Job 1 out of 1
Status: Running (Executing on YARN cluster with App id application_1519462946874_0013)

----------------------------------------------------------------------------------------------
VERTICES MODE STATUS TOTAL COMPLETED RUNNING PENDING FAILED KILLED
----------------------------------------------------------------------------------------------
Map 1 .......... container SUCCEEDED 1 1 0 0 0 0
Reducer 2 ...... container SUCCEEDED 1 1 0 0 0 0
----------------------------------------------------------------------------------------------
VERTICES: 02/02 [==========================>>] 100% ELAPSED TIME: 5.97 s
----------------------------------------------------------------------------------------------
OK
total
28918
Time taken: 6.438 seconds, Fetched: 1 row(s)

2.test gbif_0004991

create by MR

hive> set hive.execution.engine=mr;
Hive-on-MR is deprecated in Hive 2 and may not be available in the future versions. Consider using a different execution engine (i.e. spark, tez) or using Hive 1.X releases.
hive> CREATE TABLE gbif.gbif_0004991
> STORED AS ORC
> TBLPROPERTIES("orc.compress"="snappy")
> AS SELECT * FROM gbif.gbif_0004991_ori;
WARNING: Hive-on-MR is deprecated in Hive 2 and may not be available in the future versions. Consider using a different execution engine (i.e. spark, tez) or using Hive 1.X releases.
Query ID = wanghongmeng_20180224191238_19301476-a77f-45fa-a405-05a8732a45e9
Total jobs = 1
Launching Job 1 out of 1
Number of reduce tasks is set to 0 since there's no reduce operator
Starting Job = job_1519462946874_0010, Tracking URL = http://localhost:8088/proxy/application_1519462946874_0010/
Kill Command = /usr/local/Cellar/hadoop/2.8.2/bin/hadoop job -kill job_1519462946874_0010
Hadoop job information for Stage-1: number of mappers: 14; number of reducers: 0
2018-02-24 19:16:32,473 Stage-1 map = 0%, reduce = 0%
2018-02-24 19:17:32,678 Stage-1 map = 0%, reduce = 0%
2018-02-24 19:17:40,248 Stage-1 map = 7%, reduce = 0%
2018-02-24 19:17:51,119 Stage-1 map = 11%, reduce = 0%
2018-02-24 19:17:52,207 Stage-1 map = 18%, reduce = 0%
2018-02-24 19:17:58,625 Stage-1 map = 21%, reduce = 0%
2018-02-24 19:18:13,859 Stage-1 map = 25%, reduce = 0%
2018-02-24 19:18:15,999 Stage-1 map = 32%, reduce = 0%
2018-02-24 19:18:30,537 Stage-1 map = 36%, reduce = 0%
2018-02-24 19:18:31,625 Stage-1 map = 39%, reduce = 0%
2018-02-24 19:18:32,759 Stage-1 map = 43%, reduce = 0%
2018-02-24 19:19:17,117 Stage-1 map = 46%, reduce = 0%
2018-02-24 19:19:19,250 Stage-1 map = 50%, reduce = 0%
2018-02-24 19:19:25,639 Stage-1 map = 54%, reduce = 0%
2018-02-24 19:19:28,825 Stage-1 map = 57%, reduce = 0%
2018-02-24 19:19:32,031 Stage-1 map = 61%, reduce = 0%
2018-02-24 19:19:33,101 Stage-1 map = 64%, reduce = 0%
2018-02-24 19:19:39,470 Stage-1 map = 68%, reduce = 0%
2018-02-24 19:19:42,677 Stage-1 map = 71%, reduce = 0%
2018-02-24 19:19:54,459 Stage-1 map = 75%, reduce = 0%
2018-02-24 19:19:58,723 Stage-1 map = 79%, reduce = 0%
2018-02-24 19:20:04,147 Stage-1 map = 82%, reduce = 0%
2018-02-24 19:20:06,277 Stage-1 map = 86%, reduce = 0%
2018-02-24 19:20:15,977 Stage-1 map = 93%, reduce = 0%
2018-02-24 19:20:20,269 Stage-1 map = 96%, reduce = 0%
2018-02-24 19:20:36,398 Stage-1 map = 100%, reduce = 0%
Ended Job = job_1519462946874_0010
Stage-4 is selected by condition resolver.
Stage-3 is filtered out by condition resolver.
Stage-5 is filtered out by condition resolver.
Moving data to directory hdfs://localhost:9000/user/hive/warehouse/gbif.db/.hive-staging_hive_2018-02-24_19-12-38_616_5758586722663198282-1/-ext-10002
Moving data to directory hdfs://localhost:9000/user/hive/warehouse/gbif.db/gbif_0004991
MapReduce Jobs Launched:
Stage-Stage-1: Map: 14 HDFS Read: 3539512736 HDFS Write: 342789525 SUCCESS
Total MapReduce CPU Time Spent: 0 msec
OK
Time taken: 481.311 seconds

create via Tez

hive> set hive.execution.engine=tez;
hive> CREATE TABLE gbif.gbif_0004991
> STORED AS ORC
> TBLPROPERTIES("orc.compress"="snappy")
> AS SELECT * FROM gbif.gbif_0004991_ori;
Query ID = wanghongmeng_20180224192800_111872d9-059b-4a8a-9fd7-e3ea02af8898
Total jobs = 1
Launching Job 1 out of 1
Tez session was closed. Reopening...
Session re-established.
Status: Running (Executing on YARN cluster with App id application_1519462946874_0013)

----------------------------------------------------------------------------------------------
VERTICES MODE STATUS TOTAL COMPLETED RUNNING PENDING FAILED KILLED
----------------------------------------------------------------------------------------------
Map 1 .......... container SUCCEEDED 1 1 0 0 0 0
----------------------------------------------------------------------------------------------
VERTICES: 01/01 [==========================>>] 100% ELAPSED TIME: 241.12 s
----------------------------------------------------------------------------------------------
Moving data to directory hdfs://localhost:9000/user/hive/warehouse/gbif.db/gbif_0004991
OK
gbif_0004991_ori.gbifid gbif_0004991_ori.datasetkey gbif_0004991_ori.occurrenceid gbif_0004991_ori.kingdom gbif_0004991_ori.phylum gbif_0004991_ori.class gbif_0004991_ori.orders gbif_0004991_ori.family gbif_0004991_ori.genus gbif_0004991_ori.species gbif_0004991_ori.infraspecificepithet gbif_0004991_ori.taxonrank gbif_0004991_ori.scientificname gbif_0004991_ori.countrycode gbif_0004991_ori.locality gbif_0004991_ori.publishingorgkey gbif_0004991_ori.decimallatitude gbif_0004991_ori.decimallongitude gbif_0004991_ori.coordinateuncertaintyinmeters gbif_0004991_ori.coordinateprecision gbif_0004991_ori.elevation gbif_0004991_ori.elevationaccuracy gbif_0004991_ori.depth gbif_0004991_ori.depthaccuracy gbif_0004991_ori.eventdate gbif_0004991_ori.day gbif_0004991_ori.month gbif_0004991_ori.year gbif_0004991_ori.taxonkey gbif_0004991_ori.specieskey gbif_0004991_ori.basisofrecord gbif_0004991_ori.institutioncode gbif_0004991_ori.collectioncode gbif_0004991_ori.catalognumber gbif_0004991_ori.recordnumber gbif_0004991_ori.identifiedby gbif_0004991_ori.license gbif_0004991_ori.rightsholder gbif_0004991_ori.recordedby gbif_0004991_ori.typestatus gbif_0004991_ori.establishmentmeans gbif_0004991_ori.lastinterpreted gbif_0004991_ori.mediatype gbif_0004991_ori.issue
Time taken: 252.548 seconds

query via MR

hive> set hive.execution.engine=mr;
WARNING: Hive-on-MR is deprecated in Hive 2 and may not be available in the future versions. Consider using a different execution engine (i.e. spark, tez) or using Hive 1.X releases.
hive> select count(*) from gbif_0004991 where mediatype = 'STILLIMAGE';
Query ID = wanghongmeng_20180224192630_b2934027-2423-4945-864b-6ce663e676fa
Number of reduce tasks determined at compile time: 1
In order to change the average load for a reducer (in bytes):
set hive.exec.reducers.bytes.per.reducer=<number>
In order to limit the maximum number of reducers:
set hive.exec.reducers.max=<number>
In order to set a constant number of reducers:
set mapreduce.job.reduces=<number>
Starting Job = job_1519462946874_0012, Tracking URL = http://localhost:8088/proxy/application_1519462946874_0012/
Kill Command = /usr/local/Cellar/hadoop/2.8.2/bin/hadoop job -kill job_1519462946874_0012
Hadoop job information for Stage-1: number of mappers: 2; number of reducers: 1
2018-02-24 19:26:43,988 Stage-1 map = 0%, reduce = 0%
2018-02-24 19:27:00,086 Stage-1 map = 50%, reduce = 0%
2018-02-24 19:27:03,287 Stage-1 map = 74%, reduce = 0%
2018-02-24 19:27:05,422 Stage-1 map = 100%, reduce = 0%
2018-02-24 19:27:08,595 Stage-1 map = 100%, reduce = 100%
Ended Job = job_1519462946874_0012
MapReduce Jobs Launched:
Stage-Stage-1: Map: 2 Reduce: 1 HDFS Read: 602777 HDFS Write: 106 SUCCESS
Total MapReduce CPU Time Spent: 0 msec
OK
total
374998
Time taken: 38.903 seconds, Fetched: 1 row(s)

query via Tez

hive> set hive.execution.engine=tez;
hive> select count(*) from gbif_0004991 where mediatype = 'STILLIMAGE';
Query ID = wanghongmeng_20180224193241_f4edd363-fdb8-4461-b687-4b775e8719c0
Total jobs = 1
Launching Job 1 out of 1
Status: Running (Executing on YARN cluster with App id application_1519462946874_0013)

----------------------------------------------------------------------------------------------
VERTICES MODE STATUS TOTAL COMPLETED RUNNING PENDING FAILED KILLED
----------------------------------------------------------------------------------------------
Map 1 .......... container SUCCEEDED 2 2 0 0 0 0
Reducer 2 ...... container SUCCEEDED 1 1 0 0 0 0
----------------------------------------------------------------------------------------------
VERTICES: 02/02 [==========================>>] 100% ELAPSED TIME: 16.54 s
----------------------------------------------------------------------------------------------
OK
total
374998
Time taken: 17.258 seconds, Fetched: 1 row(s)

3.summary

Table	Total Count	Create Table	Query
gbif_0004998	327,316	MR	28.28s	MR	28.529s
Tez	16.631s	Tez	6.438s
gbif_0004991	6,914,665	MR	481.311s	MR	38.903s
Tez	252.548s	Tez	17.258s

Wang 20:34 on 2018-02-24 Permalink | Reply
Tags: BigData ( 34 ), Hadoop ( 14 ), Hive ( 15 ), Tez ( 6 )

Conflicting jars of Hadoop and Tez

After I installed Tez, it’s ok to run hive jobs via Tez, but when I changed engine to MR, I got below error:

WARNING: Hive-on-MR is deprecated in Hive 2 and may not be available in the future versions. Consider using a different execution engine (i.e. spark, tez) or using Hive 1.X releases.
Query ID = wanghongmeng_20180224185414_623cf20b-77d4-4a09-a17d-41c72ed76ac3
Total jobs = 1
Launching Job 1 out of 1
Number of reduce tasks determined at compile time: 1
In order to change the average load for a reducer (in bytes):
set hive.exec.reducers.bytes.per.reducer=<number>
In order to limit the maximum number of reducers:
set hive.exec.reducers.max=<number>
In order to set a constant number of reducers:
set mapreduce.job.reduces=<number>
FAILED: Execution Error, return code -101 from org.apache.hadoop.hive.ql.exec.mr.MapRedTask. DEFAULT_MR_AM_ADMIN_USER_ENV

I can’t see any useful information from logs, after long time’s investigating, I found hadoop-mapreduce-client-common-2.7.0.jar/hadoop-mapreduce-client-core-2.7.0.jar under Tez library were conflicting with hadoop version, my installed hadoop version was 2.8.2, so I removed the two jars.

After doing this, I could run hive on MR successfully..😀

Wang 19:51 on 2018-02-24 Permalink | Reply
Tags: BigData ( 34 ), Hadoop ( 14 ), Hive ( 15 ), Tez ( 6 ), Tomcat

Replace MR with Tez on hive2

From hive2 Hive-on-MR is not recommended, you could see the warning information when running hive cli

Hive-on-MR is deprecated in Hive 2 and may not be available in the future versions. Consider using a different execution engine (i.e. spark, tez) or using Hive 1.X releases.

So I installed Tez to replace MR to run jobs, below are installation steps.

1.install Tez

1.1.down Tez and unpackage

wget http://ftp.jaist.ac.jp/pub/apache/tez/0.9.0/apache-tez-0.9.0-src.tar.gz
tar -zvxf apache-tez-0.9.0-src.tar.gz && cd apache-tez-0.9.0-src

1.2.compile and build Tez jar, you need install protobuf/maven before compiling

mvn clean package -DskipTests=true -Dmaven.javadoc.skip=true

1.3.upload Tez to hdfs

hadoop fs -mkdir /apps
hadoop fs -copyFromLocal tez-dist/target/tez-0.9.0.tar.gz /apps/

1.4.create tez-site.xml under hadoop conf directory

cat <<'EOF' > $HADOOP_CONF_DIR/tez-site.xml
<?xml version="1.0" encoding="UTF-8"?>
<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>
<configuration>
    <property>
        <name>tez.lib.uris</name>
        <value>${fs.defaultFS}/apps/tez-0.9.0.tar.gz</value>
    </property>
    <property>
        <name>tez.history.logging.service.class</name>
        value>org.apache.tez.dag.history.logging.ats.ATSHistoryLoggingService</value>
    </property>
    <property>
        <name>tez.tez-ui.history-url.base</name>
        <value>http://localhost:8080/tez-ui/</value>
    </property>
</configuration>
EOF

1.5.append configurations to yarn-site.xml

<property>
    <name>yarn.nodemanager.aux-services</name>
    <value>mapreduce_shuffle</value>
</property>
<property>
    <name>yarn.nodemanager.aux-services.mapreduce_shuffle.class</name>
    <value>org.apache.hadoop.mapred.ShuffleHandler</value>
</property>
<property>
    <name>yarn.timeline-service.enabled</name>
    <value>true</value>
</property>
<property>
    <name>yarn.resourcemanager.system-metrics-publisher.enabled</name>
    <value>true</value>
</property>
<property>
    <name>yarn.timeline-service.generic-application-history.enabled</name>
    <value>true</value>
</property>
<property>
    <name>yarn.timeline-service.http-cross-origin.enabled</name>
    <value>true</value>
</property>
<property>
    <name>yarn.timeline-service.hostname</name>
    <value>localhost</value>
</property>
<property>
    <name>yarn.resourcemanager.webapp.cross-origin.enabled</name>
    <value>true</value>
</property>
<property>
    <name>yarn.resourcemanager.address</name>
    <value>localhost:8032</value>
</property>
<property>
    <name>yarn.resourcemanager.scheduler.address</name>
    <value>localhost:8030</value>
</property>
<property>
    <name>yarn.resourcemanager.resource-tracker.address</name>
    <value>localhost:8031</value>
</property>

1.6.append configuration to core-site.xml

<property>
    <name>fs.default.name</name>
    <value>hdfs://master:9000</value>
</property>
<property>
    <name>hadoop.tmp.dir</name>
    <value>/data/hadoop/hdfs/tmp</value>
</property>
<property>
    <name>hadoop.http.filter.initializers</name>
    <value>org.apache.hadoop.security.HttpCrossOriginFilterInitializer</value>
</property>

1.7.unpackage tez-dist/target/tez-0.9.0-minimal.tar.gz

1.8.append env to /etc/profile

export TEZ_CONF_DIR="location of tez-site.xml"
export TEZ_JARS="location of unpackaged tez-0.9.0-minimal.tar.gz"
export HADOOP_CLASSPATH=${TEZ_CONF_DIR}:${TEZ_JARS}/*:${TEZ_JARS}/lib/*

1.9.start timelineserver

yarn-daemon.sh start timelineserver

1.10.configure tez ui, install tomcat, unpackage tez-ui/target/tez-ui-0.9.0.war into webapps, rename unpackaged directory to tez-ui

1.11.start tomcat, visit http://localhost:8080/tez-ui to test

2.test Tez

2.1.change job engine to Tez

hive> set hive.execution.engine=tez;

2.2.run job to test

hive> select count(*) from gbif_0004998;
Query ID = wanghongmeng_20180224180801_e5ddcf23-1e1a-4724-8156-1393807c2ac0
Total jobs = 1
Launching Job 1 out of 1
Status: Running (Executing on YARN cluster with App id application_1519462946874_0003)

----------------------------------------------------------------------------------------------
VERTICES MODE STATUS TOTAL COMPLETED RUNNING PENDING FAILED KILLED
----------------------------------------------------------------------------------------------
Map 1 .......... container SUCCEEDED 1 1 0 0 0 0
Reducer 2 ...... container SUCCEEDED 1 1 0 0 0 0
----------------------------------------------------------------------------------------------
VERTICES: 02/02 [==========================>>] 100% ELAPSED TIME: 9.87 s
----------------------------------------------------------------------------------------------
OK
327316
Time taken: 23.876 seconds, Fetched: 1 row(s)

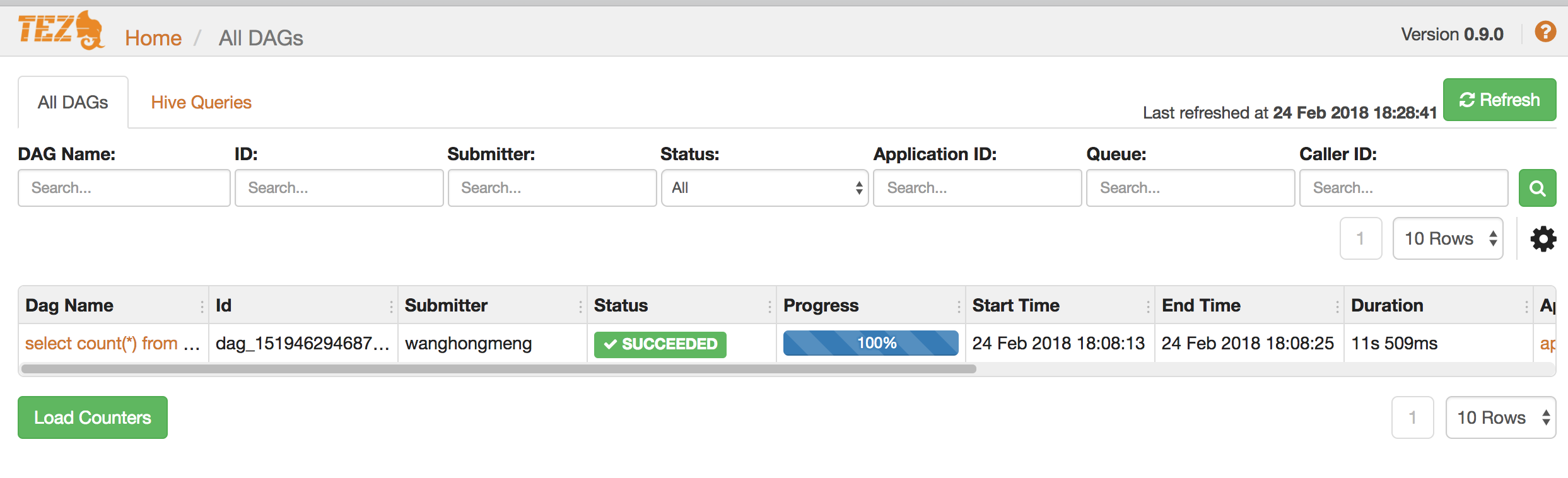

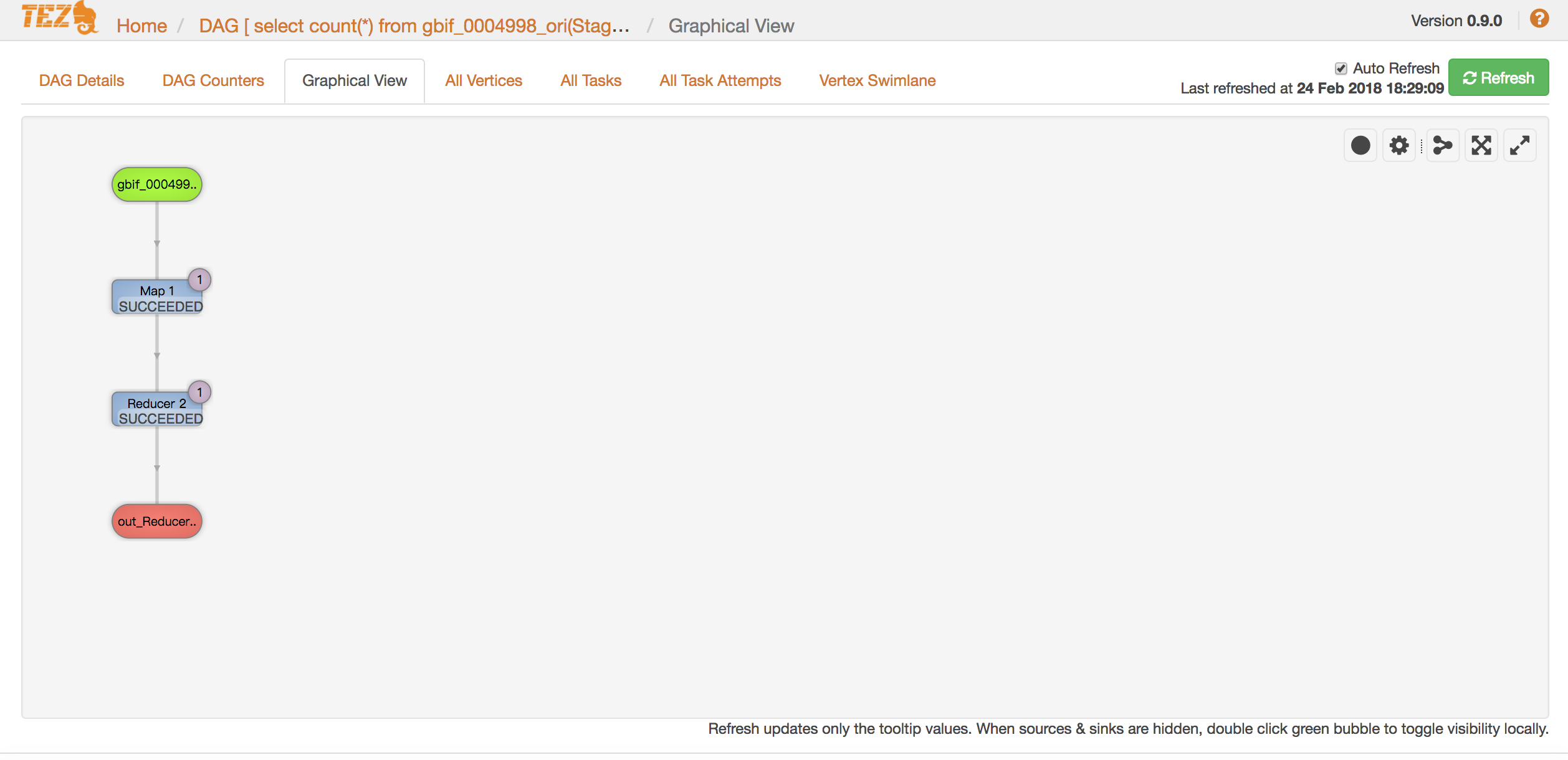

2.3.check result on tez ui

Wang 22:13 on 2018-02-21 Permalink | Reply
Tags: BigData ( 34 ), CentOS7 ( 7 ), Cloud ( 26 ), Docker ( 27 ), Mysql ( 7 )

Manage BDP by ambari

It’s boring and complicated to manage bigdata platforms, there are so many softwares need to be installed and coordinated to make them work well together, so I tried ambari to manage them.

1.run centos7 container

docker run -dit --name centos7 --privileged --publish 8080:8080 centos:7 /usr/sbin/init

2.operate container

2.1.enter container

docker exec -it centos7 bash

2.2.update yum and install tools

yum update -y && yum install -y wget

2.3.download the ambari repository

wget -nv http://public-repo-1.hortonworks.com/ambari/centos7/2.x/updates/2.6.0.0/ambari.repo -O /etc/yum.repos.d/ambari.repo

2.4.install the ambari

yum install -y ambari-server
yum install -y ambari-agent

2.5.install mysql as metastore, ,create mysql repo under /etc/yum.repos.d

cat << 'EOF' >/etc/yum.repos.d/mysql.5.7.repo
[mysql57-community]
name=MySQL 5.7 Community Server
baseurl=http://repo.mysql.com/yum/mysql-5.7-community/el/7/$basearch/
enabled=1
gpgcheck=0
EOF

2.6.install mysql server

yum install -y mysql-community-server

2.7.start mysql

systemctl start mysqld

2.8.create mysql user && init database

mysql_password=ambari
mysql_default_password=`grep 'temporary password' /var/log/mysqld.log | awk -F ': ' '{print $2}'`
mysql -u root -p${mysql_default_password} -e "set global validate_password_policy=0; set global validate_password_length=4;" --connect-expired-password
mysqladmin -u root -p${mysql_default_password} password ${mysql_password}
mysql -u root -p${mysql_password} -e "create database ambari default charset 'utf8'; flush privileges;"
mysql -u root -p${mysql_password} -e "grant all privileges on ambari.* to ambari@'' identified by 'ambari'; flush privileges;"
mysql -u root -p${mysql_password} -e "use ambari; source /var/lib/ambari-server/resources/Ambari-DDL-MySQL-CREATE.sql;"

2.9.download mysql driver

driver_path=/usr/share/java
mkdir ${driver_path}
wget http://central.maven.org/maven2/mysql/mysql-connector-java/5.1.45/mysql-connector-java-5.1.45.jar -O ${driver_path}/mysql-connector.jar

2.10.setup ambari server, pay attention to database configuration, need select mysql manually

ambari-server setup

2.11.modify ambari database configuration

echo "server.jdbc.driver.path=${driver_path}/mysql-connector.jar" >> /etc/ambari-server/conf/ambari.properties

2.12.start ambari

ambari-server start
ambari-agent start
ambari-server setup --jdbc-db=mysql --jdbc-driver=${driver_path}/mysql-connector.jar

3.login, default accuont: admin/admin
http://localhost:8080

P.S.

The above steps are configured on single server, if you wanna build cluster with several servers, you also need configure ssh key(please google for specific steps, it’s simple) and start ambari-agent on slave servers.

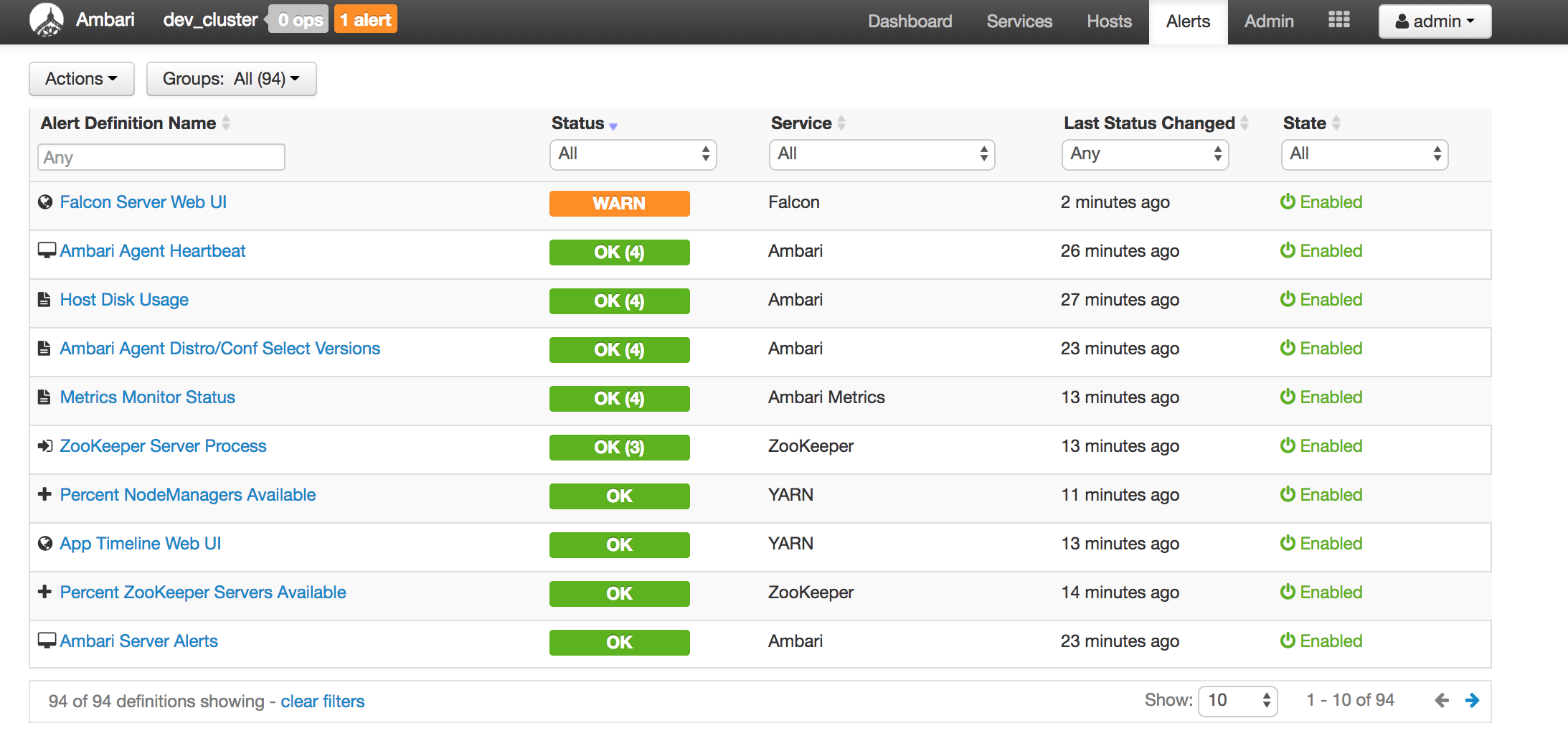

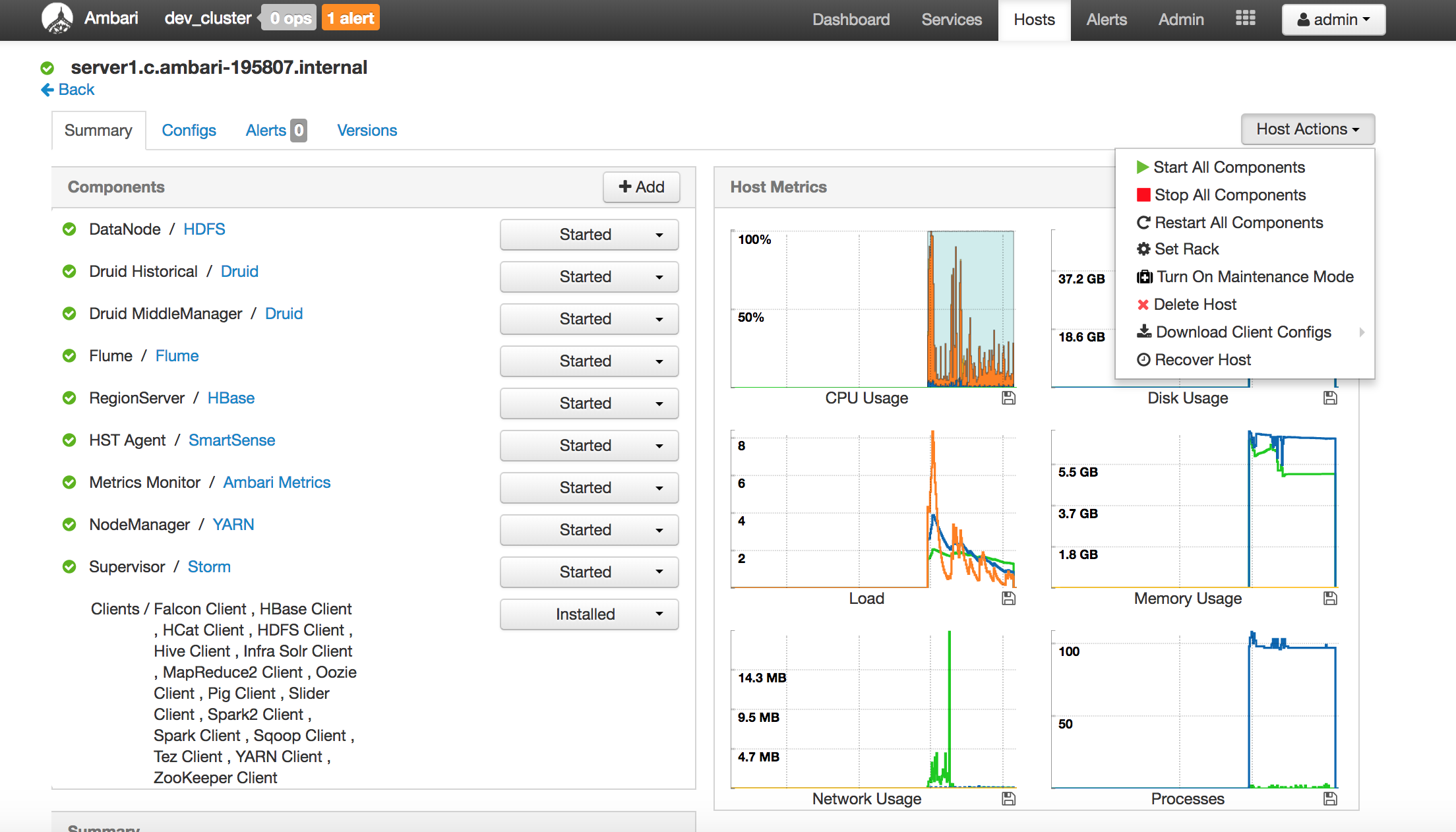

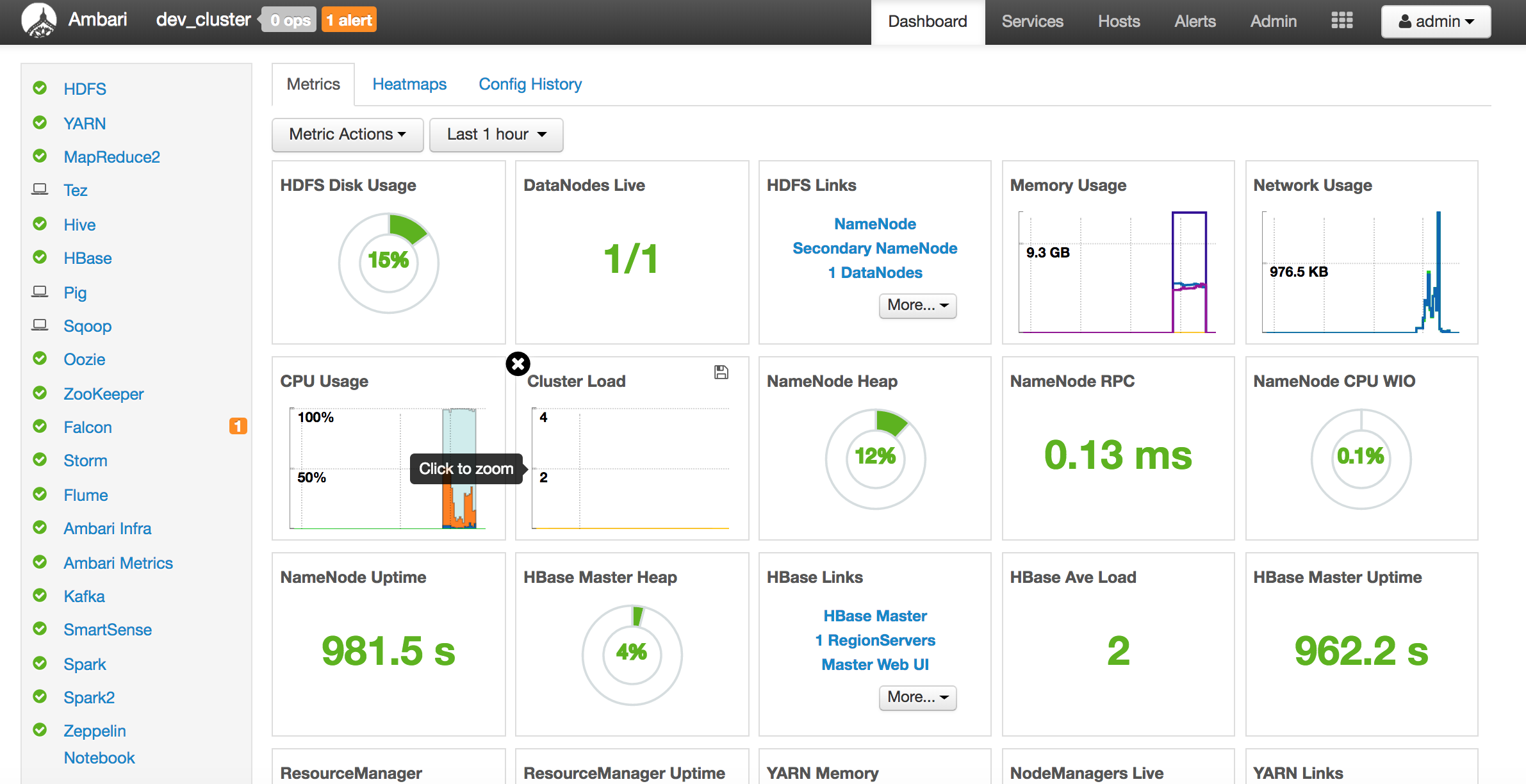

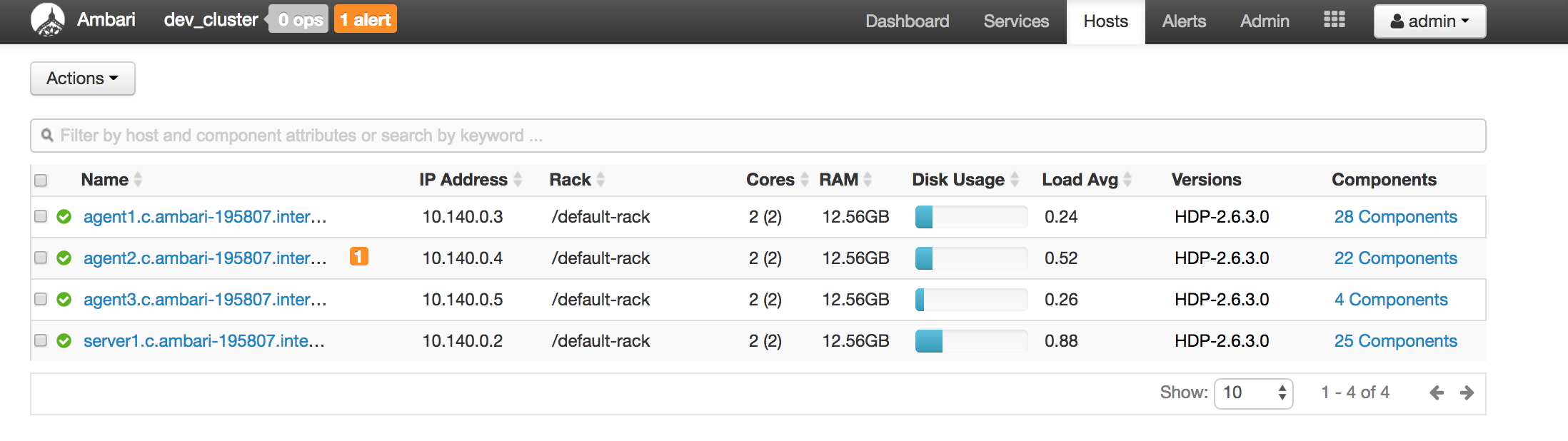

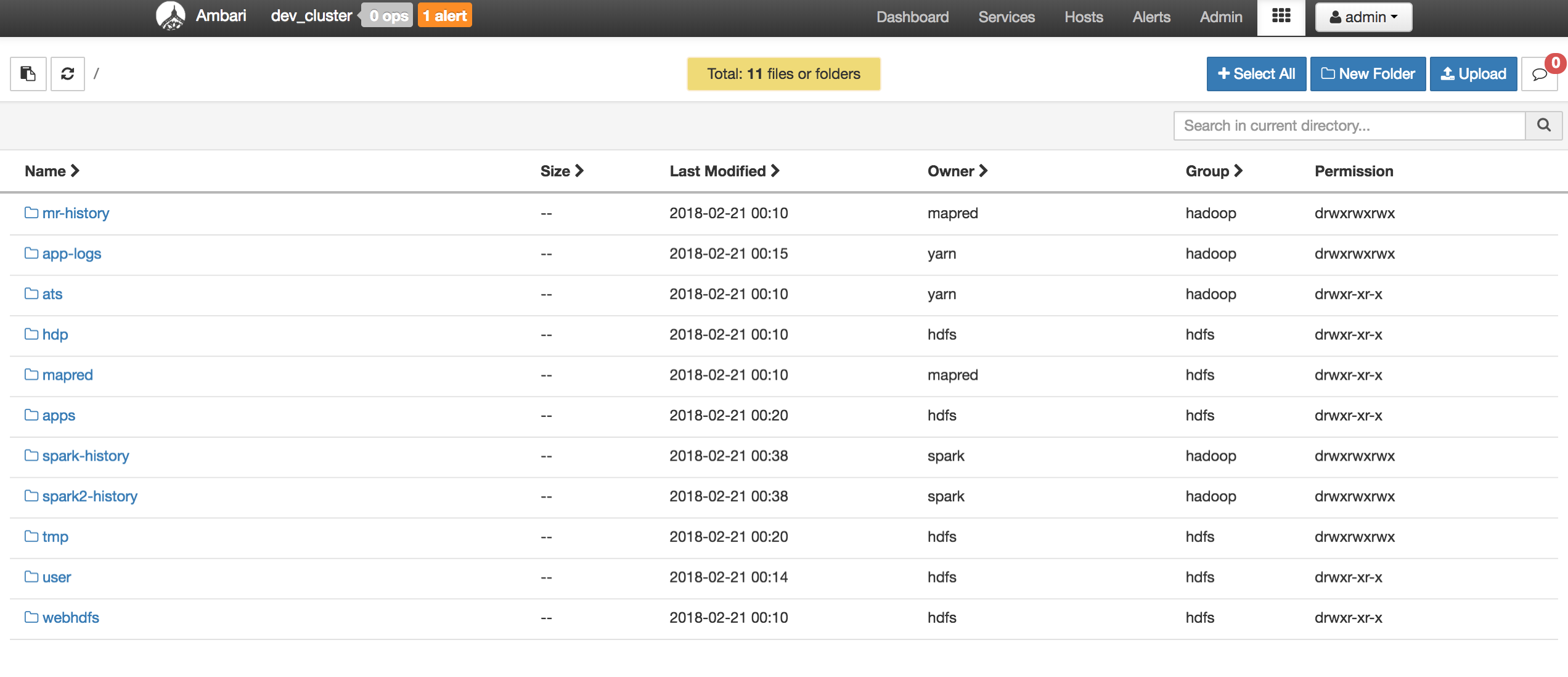

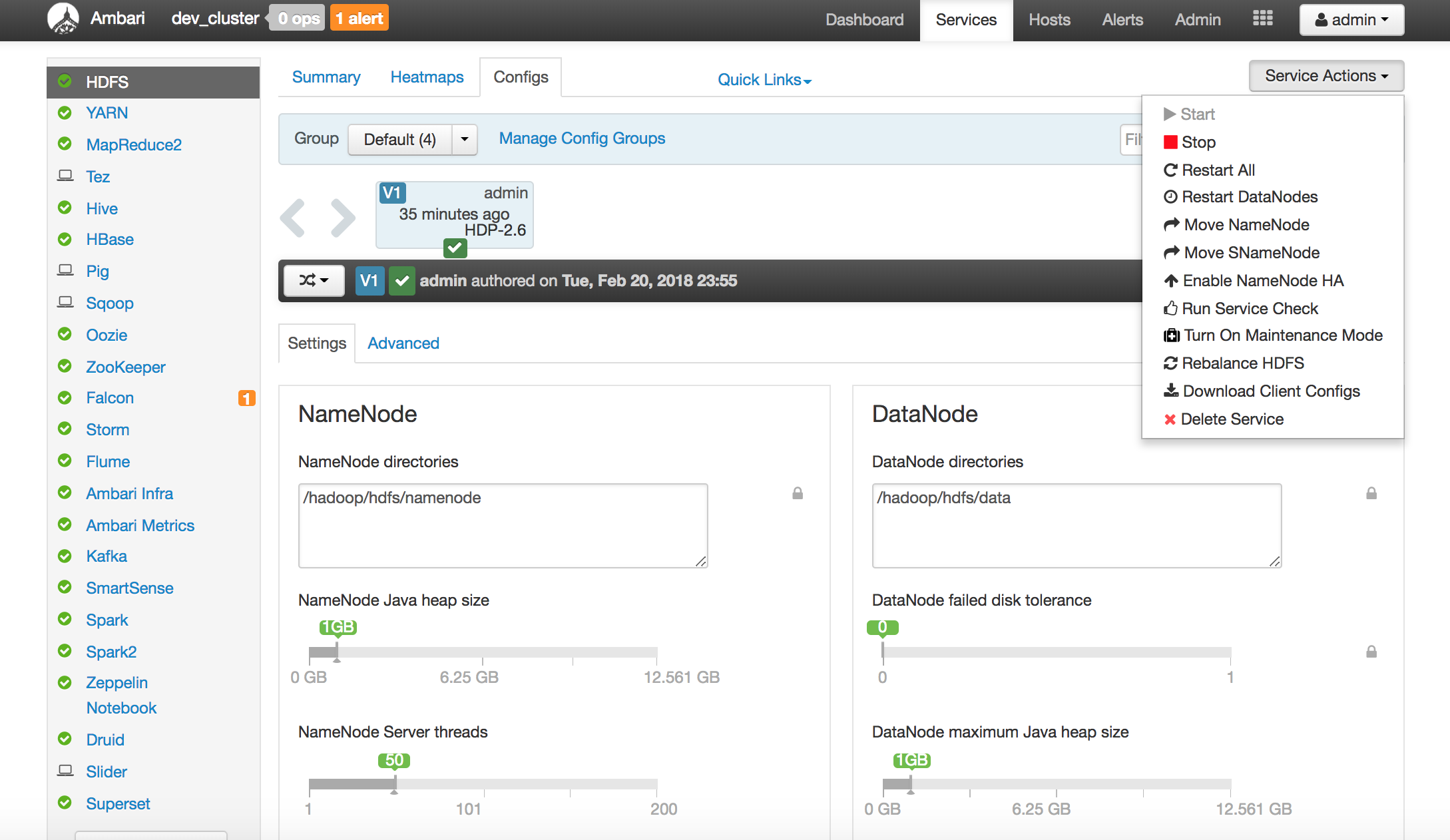

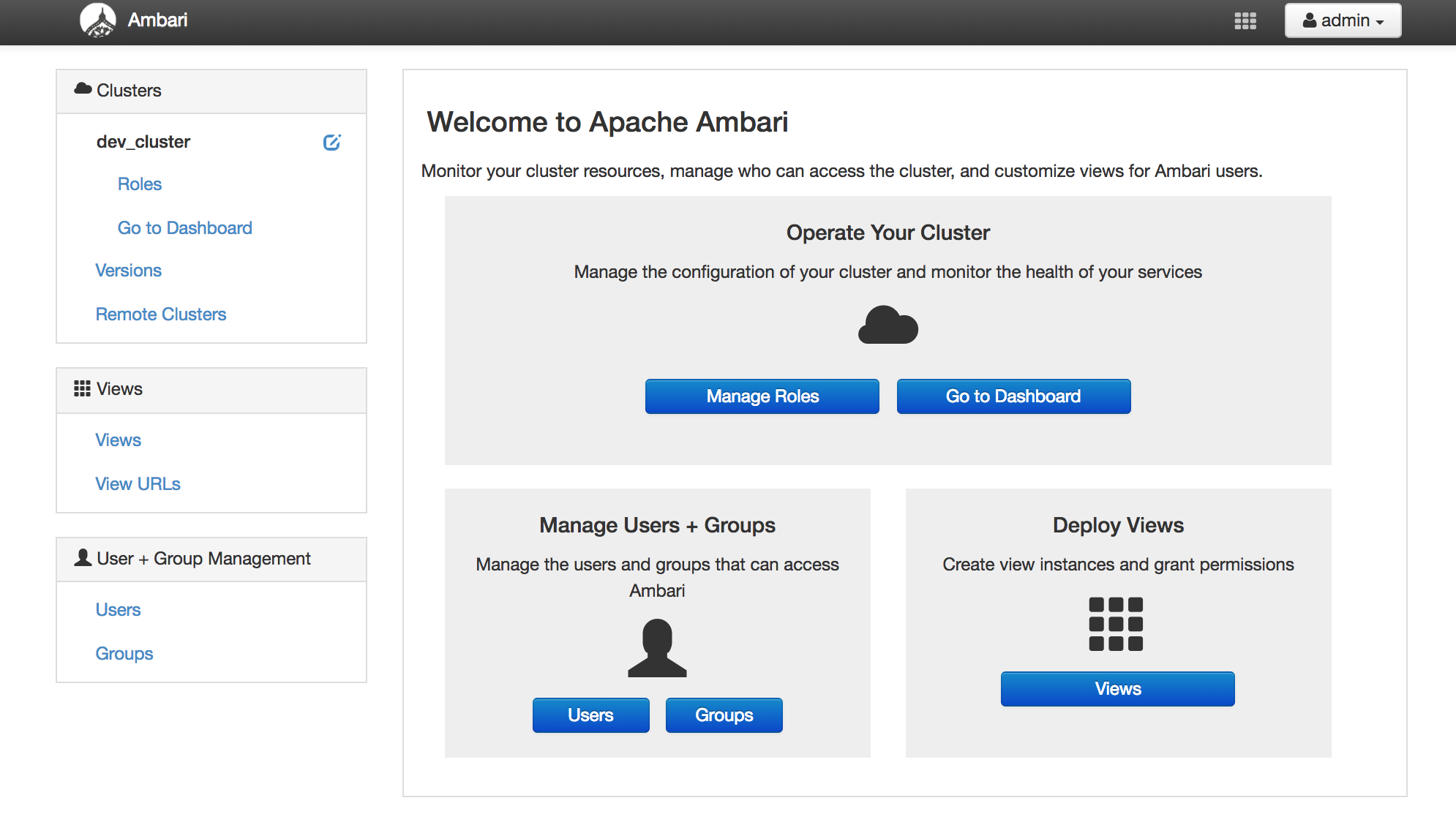

Below are screenshots of a mini cluster which was built by 4 servers:

Wang 23:30 on 2018-02-16 Permalink | Reply
Tags: Movie, Status ( 23 ), YouTube ( 10 )

meet joe black..

Like this:
Like Loading...
Wang 23:19 on 2018-02-13 Permalink | Reply
Tags: Hive ( 15 ), Mysql ( 7 )
Delete Hive Meta Error

I got this error when I deleted hive table, due to delete hive metastore cascade in mysql:
```
com.mysql.jdbc.exceptions.jdbc4.MySQLSyntaxErrorException: You have an error in your SQL syntax;
check the manual that corresponds to your MySQL server version for the right syntax to use near 'OPTION SQL_SELECT_LIMIT=DEFAULT' at line 1
```
- Mysql Version: 5.6
- Hive Version: 2.3.1
- Mysql Connector Version: 5.1.26
After searching, I found it’s the bug of mysql connector, https://bugs.mysql.com/bug.php?id=66659.

So I change mysql connector to 5.1.39, things done😀

Like this:
Like Loading...
Wang 18:23 on 2018-02-10 Permalink | Reply
Tags: Blog ( 7 ), Chrome, Performance ( 28 ), Security ( 20 ), Web

not good..

Like this:
Like Loading...

Wang 22:15 on 2018-02-07 Permalink | Reply
Tags: BigData ( 34 ), Hadoop ( 14 ), Hive ( 15 )

Use GBIF’s dataset to do analysis

GBIF, global biodiversity information facility which contains huge data, I think it’s good to do analysis with gbif’s data sample.

Please follow the web’s instruction to download the sample dataset.

After doing this, I imported the dataset into hive, below are the steps.

1.create hdfs path

hdfs dfs -mkdir -p /user/hive/gbif/0004998

2.upload dataset into hdfs’s directory which was created on step 1

hdfs dfs -copyFromLocal /Users/wanghongmeng/Desktop/0004998-180131172636756.csv /user/hive/gbif/0004998

3.create hive table and load dataset

CREATE EXTERNAL TABLE gbif_0004998_ori (
gbifid string,
datasetkey string,
occurrenceid string,
kingdom string,
...
...
establishmentmeans string,
lastinterpreted string,
mediatype string,
issue string)
ROW FORMAT DELIMITED
FIELDS TERMINATED BY 't'
STORED as TEXTFILE
LOCATION '/user/hive/gbif/0004998'
tblproperties ('skip.header.line.count'='1');

4.create new hive table by snappy compression, then drop origin table

CREATE TABLE gbif.gbif_0004998
STORED AS ORC
TBLPROPERTIES("orc.compress"="snappy")
AS SELECT * FROM gbif.gbif_0004998_ori;

drop table gbif.gbif_0004998_ori;

5.check hive table’s infomation

hive> desc formatted gbif_0004998;
OK
# col_name data_type comment

gbifid string
datasetkey string
occurrenceid string
kingdom string
phylum string
...
...
# Detailed Table Information
Database: gbif
Owner: wanghongmeng
CreateTime: Wed Feb 7 21:28:25 JST 2018
LastAccessTime: UNKNOWN
Retention: 0
Location: hdfs://localhost:9000/user/hive/warehouse/gbif.db/gbif_0004998
Table Type: MANAGED_TABLE
Table Parameters:
COLUMN_STATS_ACCURATE {"BASIC_STATS":"true"}
numFiles 1
numRows 327316
orc.compress snappy
rawDataSize 1319738112
totalSize 13510344
transient_lastDdlTime 1519457306

# Storage Information
SerDe Library: org.apache.hadoop.hive.ql.io.orc.OrcSerde
InputFormat: org.apache.hadoop.hive.ql.io.orc.OrcInputFormat
OutputFormat: org.apache.hadoop.hive.ql.io.orc.OrcOutputFormat
Compressed: No
Num Buckets: -1
Bucket Columns: []
Sort Columns: []
Storage Desc Params:
serialization.format 1
Time taken: 0.078 seconds, Fetched: 74 row(s)

6.check data

hive> select * from gbif.gbif_0004998 limit 5;
OK
1633594438 8130e5c6-f762-11e1-a439-00145eb45e9a KINGDOM incertae sedis EE Põhja-Kiviõli opencast mine 70488160-b003-11d8-a8af-b8a03c50a862 59.366475 26.8873 1000.0 2010-04-30T02:00Z 30 4 2010 0 FOSSIL_SPECIMEN Institute of Geology at TUT GIT 343-200 Toom CC_BY_NC_4_0 Toom 2018-02-02T20:24Z STILLIMAGE GEODETIC_DATUM_ASSUMED_WGS84;TAXON_MATCH_NONE
1633594440 8130e5c6-f762-11e1-a439-00145eb45e9a KINGDOM incertae sedis EE Neitla Quarry 70488160-b003-11d8-a8af-b8a03c50a862 59.102247 25.762486 10.0 2012-09-12T02:00Z 12 9 2012 0 FOSSIL_SPECIMEN Institute of Geology at TUT GIT 362-272 CC_BY_NC_4_0 Toom 2018-02-02T20:24Z STILLIMAGE GEODETIC_DATUM_ASSUMED_WGS84;TAXON_MATCH_NONE
1633594442 8130e5c6-f762-11e1-a439-00145eb45e9a KINGDOM incertae sedis EE Päri quarry 70488160-b003-11d8-a8af-b8a03c50a862 58.840459 24.042791 10.0 2014-05-23T02:00Z 23 5 2014 0 FOSSIL_SPECIMEN Institute of Geology at TUT GIT 340-303 Toom CC_BY_NC_4_0 Hints, O. 2018-02-02T20:24Z STILLIMAGE GEODETIC_DATUM_ASSUMED_WGS84;TAXON_MATCH_NONE
1633594445 8130e5c6-f762-11e1-a439-00145eb45e9a KINGDOM incertae sedis EE Saxby shore 70488160-b003-11d8-a8af-b8a03c50a862 59.027778 23.117222 10.0 2017-06-17T02:00Z 17 6 2017 0 FOSSIL_SPECIMEN Institute of Geology at TUT GIT 362-544 Toom CC_BY_NC_4_0 Toom 2018-02-02T20:24Z STILLIMAGE GEODETIC_DATUM_ASSUMED_WGS84;TAXON_MATCH_NONE
1633594446 8130e5c6-f762-11e1-a439-00145eb45e9a KINGDOM incertae sedis EE Saxby shore 70488160-b003-11d8-a8af-b8a03c50a862 59.027778 23.117222 10.0 2017-06-17T02:00Z 17 6 2017 0 FOSSIL_SPECIMEN Institute of Geology at TUT GIT 362-570 CC_BY_NC_4_0 Baranov 2018-02-02T20:24Z GEODETIC_DATUM_ASSUMED_WGS84;TAXON_MATCH_NONE
Time taken: 0.172 seconds, Fetched: 5 row(s)

Wang 17:19 on 2018-02-04 Permalink | Reply
Tags: Music, Status ( 23 ), YouTube ( 10 )

吞风吻雨葬落日未曾彷徨，欺山赶海践雪径也未绝望，拈花把酒偏折煞世人情狂，凭这两眼与百臂或千手不能防，天阔阔雪漫漫共谁同航，这沙滚滚水皱皱笑着浪荡，贪欢一晌偏教那女儿情长埋葬

Like this:
Like Loading...

Recent Posts

Tags

Archives

My Girl

About Me

Updates from February, 2018 Toggle Comment Threads | Keyboard Shortcuts

Wang 21:34 on 2018-02-27 Permalink | Reply Tags: BigData ( 34 ), ETL, Hadoop ( 14 ), HBase ( 5 ), Hive ( 15 ), NoSQL

Like this:

Reply Cancel reply

Wang 19:44 on 2018-02-25 Permalink | Reply Tags: BigData ( 34 ), Hive ( 15 ), Performance ( 28 ), Tez ( 6 )

1.test gbif_0004998

create by MR

create by Tez

query by MR

query by Tez

2.test gbif_0004991

create by MR

create via Tez

query via MR

query via Tez

3.summary

Like this:

Wang 20:34 on 2018-02-24 Permalink | Reply Tags: BigData ( 34 ), Hadoop ( 14 ), Hive ( 15 ), Tez ( 6 )

Like this:

Wang 19:51 on 2018-02-24 Permalink | Reply Tags: BigData ( 34 ), Hadoop ( 14 ), Hive ( 15 ), Tez ( 6 ), Tomcat

Like this:

Wang 22:13 on 2018-02-21 Permalink | Reply Tags: BigData ( 34 ), CentOS7 ( 7 ), Cloud ( 26 ), Docker ( 27 ), Mysql ( 7 )

Like this:

Wang 23:30 on 2018-02-16 Permalink | Reply Tags: Movie, Status ( 23 ), YouTube ( 10 )

Like this:

Wang 23:19 on 2018-02-13 Permalink | Reply Tags: Hive ( 15 ), Mysql ( 7 )

Like this:

Wang 18:23 on 2018-02-10 Permalink | Reply Tags: Blog ( 7 ), Chrome, Performance ( 28 ), Security ( 20 ), Web

Like this:

Wang 22:15 on 2018-02-07 Permalink | Reply Tags: BigData ( 34 ), Hadoop ( 14 ), Hive ( 15 )

Like this:

Wang 17:19 on 2018-02-04 Permalink | Reply Tags: Music, Status ( 23 ), YouTube ( 10 )

Like this:

Wang 21:34 on 2018-02-27 Permalink | Reply
Tags: BigData ( 34 ), ETL, Hadoop ( 14 ), HBase ( 5 ), Hive ( 15 ), NoSQL

Wang 19:44 on 2018-02-25 Permalink | Reply
Tags: BigData ( 34 ), Hive ( 15 ), Performance ( 28 ), Tez ( 6 )

Wang 20:34 on 2018-02-24 Permalink | Reply
Tags: BigData ( 34 ), Hadoop ( 14 ), Hive ( 15 ), Tez ( 6 )

Wang 19:51 on 2018-02-24 Permalink | Reply
Tags: BigData ( 34 ), Hadoop ( 14 ), Hive ( 15 ), Tez ( 6 ), Tomcat

Wang 22:13 on 2018-02-21 Permalink | Reply
Tags: BigData ( 34 ), CentOS7 ( 7 ), Cloud ( 26 ), Docker ( 27 ), Mysql ( 7 )

Wang 23:30 on 2018-02-16 Permalink | Reply
Tags: Movie, Status ( 23 ), YouTube ( 10 )

Wang 23:19 on 2018-02-13 Permalink | Reply
Tags: Hive ( 15 ), Mysql ( 7 )

Wang 18:23 on 2018-02-10 Permalink | Reply
Tags: Blog ( 7 ), Chrome, Performance ( 28 ), Security ( 20 ), Web

Wang 22:15 on 2018-02-07 Permalink | Reply
Tags: BigData ( 34 ), Hadoop ( 14 ), Hive ( 15 )

Wang 17:19 on 2018-02-04 Permalink | Reply
Tags: Music, Status ( 23 ), YouTube ( 10 )
