  • Wang 22:32 on 2018-03-28 Permalink | Reply
    Tags: , , , ,

    [Spring Boot2] Demo

    Recently Spring Boot has released version 2.0.0.RELEASE, so I did a small demo which included the basic CRUD, I have uploaded the code to github.

    There are two branches, master is the normal branch, and docker branch will create docker image when you build.


  • Wang 20:12 on 2018-03-25 Permalink | Reply
    Tags: Ambari, , , ,

    [Presto] Integrate with Ambari

    Days before I have installed presto and ambari separately, officially ambari doesn’t support presto, you have to download ambari-presto-service and configure it yourself if you wanna manage presto on ambari.

    So I tried this.

    1.download hdp yum repository

    wget -nv http://public-repo-1.hortonworks.com/HDP/centos6/2.x/updates/2.6.3.0/hdp.repo -O /etc/yum.repos.d/HDP.repo


    2.download ambari-presto-service and configure

    version=`hdp-select status hadoop-client | sed 's/hadoop-client - ([0-9].[0-9]).*/1/'`
    mkdir /var/lib/ambari-server/resources/stacks/HDP/$version/services/PRESTO
    wget https://github.com/prestodb/ambari-presto-service/releases/download/v1.2/ambari-presto-1.2.tar.gz
    tar -xvf ambari-presto-1.2.tar.gz -C /var/lib/ambari-server/resources/stacks/HDP/$version/services/PRESTO
    mv /var/lib/ambari-server/resources/stacks/HDP/$version/services/PRESTO/ambari-presto-1.2/* /var/lib/ambari-server/resources/stacks/HDP/$version/services/PRESTO
    rm -rf /var/lib/ambari-server/resources/stacks/HDP/$version/services/PRESTO/ambari-presto-1.2
    chmod -R +x /var/lib/ambari-server/resources/stacks/HDP/$version/services/PRESTO/*


    3.restart ambari-server

    ambari-server restart


    4.add presto service on ambari, please configure discovery.uri when you add presto service, e.g. discovery.uri: http://coordinator:8285

    After doing this, you could add catalogs and use presto as query engine.

    I did a simple query comparison between Tez and Presto, if you wanna accurate benchmark result, I think this benchmark test could help. The query is to calculate sum on a hive table.

    Presto: 4s

    presto:test> select sum(count) as sum from (
              -> select count(*) as count from t0004998 where month = '6.5'
              -> union
              -> select count(*) as count from t0004998 where typestatus in ('VL2216','VL2217','VL2218','VL2219','VL2220')
              -> union
              -> select count(*) as count from t0004998 where countrycode in ('FAMILY','FORM','GENUS','KINGDOM','ORDER','PHYLUM','SPECIES')
              -> ) t;
      sum
    --------
     307374
    (1 row)

    Query 20180317_102034_00040_sq83e, FINISHED, 1 node
    Splits: 29 total, 29 done (100.00%)
    0:04 [982K rows, 374MB] [231K rows/s, 87.8MB/s]


    Tez: 29.77s

    hive> select sum(count) from (
        > select count(*) as count from t0004998 where month = "6.5"
        > union
        > select count(*) as count from t0004998 where typestatus in ("VL2216","VL2217","VL2218","VL2219","VL2220")
        > union
        > select count(*) as count from t0004998 where countrycode in ("FAMILY","FORM","GENUS","KINGDOM","ORDER","PHYLUM","SPECIES")
        > ) t;
    Query ID = hdfs_20180317102109_5fd30986-f840-450e-aedd-b51c5e3a48f1
    Total jobs = 1
    Launching Job 1 out of 1
    Status: Running (Executing on YARN cluster with App id application_1521267007048_0012)

    --------------------------------------------------------------------------------
            VERTICES      STATUS  TOTAL  COMPLETED  RUNNING  PENDING  FAILED  KILLED
    --------------------------------------------------------------------------------
    Map 1 ..........   SUCCEEDED      1          1        0        0       0       0
    Map 10 .........   SUCCEEDED      1          1        0        0       1       0
    Map 8 ..........   SUCCEEDED      1          1        0        0       0       0
    Reducer 11 .....   SUCCEEDED      1          1        0        0       0       0
    Reducer 2 ......   SUCCEEDED      1          1        0        0       0       1
    Reducer 4 ......   SUCCEEDED      1          1        0        0       0       0
    Reducer 6 ......   SUCCEEDED      1          1        0        0       0       0
    Reducer 7 ......   SUCCEEDED      1          1        0        0       0       0
    Reducer 9 ......   SUCCEEDED      1          1        0        0       0       0
    --------------------------------------------------------------------------------
    VERTICES: 09/09  [==========================>>] 100%  ELAPSED TIME: 29.77 s
    --------------------------------------------------------------------------------
    OK
    307374
    Time taken: 30.732 seconds, Fetched: 1 row(s)


  • Wang 17:55 on 2018-03-24 Permalink | Reply

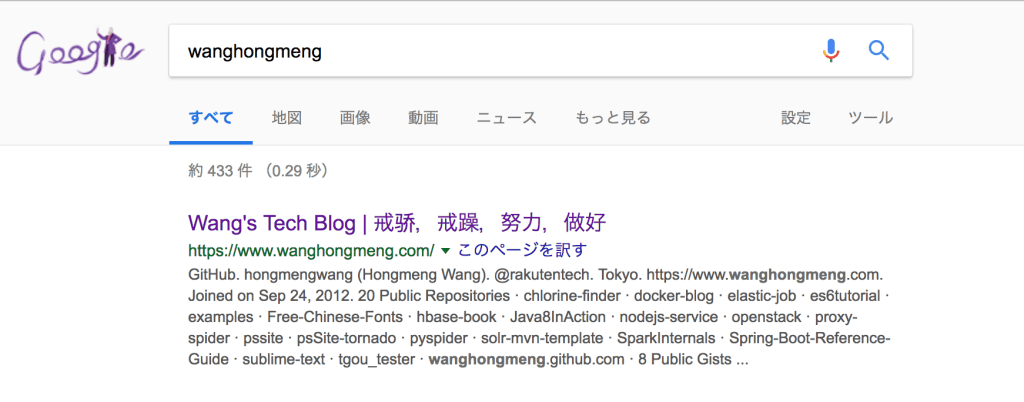

    Tags: seo,

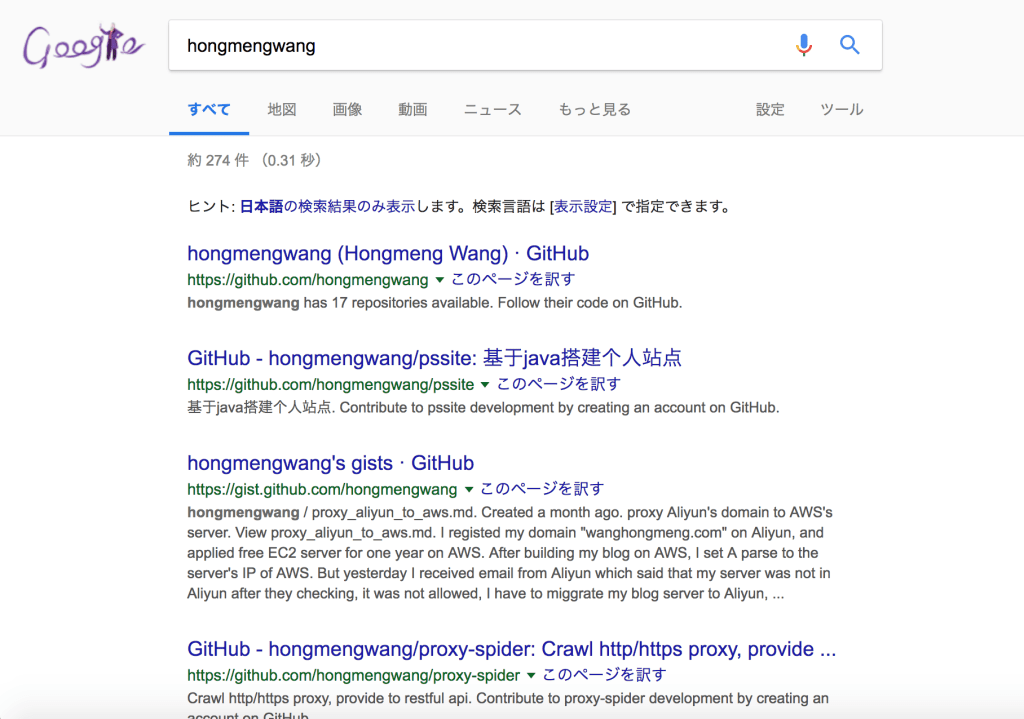

    emmm, not bad..


  • Wang 21:36 on 2018-03-20 Permalink | Reply
    Tags: , , ,

    [Presto] Build pseudo cluster

    Presto is a distributed query engine which is developed by Facebook, for specific concept and advantages, please refer to the official document, below are the steps how I build pseudo cluster on my mac.

    1.download presto

    wget https://repo1.maven.org/maven2/com/facebook/presto/presto-server/0.196/presto-server-0.196.tar.gz
    tar -zvxf presto-server-0.196.tar.gz && cd presto-server-0.196


    2.configure configurations

    mkdir etc

    cat << 'EOF' > etc/jvm.config
    -server
    -Xmx16G
    -Xms16G
    -XX:+UseG1GC
    -XX:G1HeapRegionSize=32M
    -XX:+UseGCOverheadLimit
    -XX:+ExplicitGCInvokesConcurrent
    -XX:+HeapDumpOnOutOfMemoryError
    -XX:+ExitOnOutOfMemoryError
    EOF

    cat << 'EOF' > etc/log.properties
    com.facebook.presto=INFO
    EOF

    cat << 'EOF' > etc/config1.properties
    coordinator=true
    node-scheduler.include-coordinator=true
    http-server.http.port=8001
    query.max-memory=24GB
    query.max-memory-per-node=8GB
    discovery-server.enabled=true
    discovery.uri=http://localhost:8001
    EOF

    cat << 'EOF' > etc/config2.properties
    coordinator=false
    node-scheduler.include-coordinator=true
    http-server.http.port=8002
    query.max-memory=24GB
    query.max-memory-per-node=8GB
    discovery-server.enabled=true
    discovery.uri=http://localhost:8001
    EOF

    cat << 'EOF' > etc/config3.properties
    coordinator=true
    node-scheduler.include-coordinator=true
    http-server.http.port=8003
    query.max-memory=24GB
    query.max-memory-per-node=8GB
    discovery-server.enabled=true
    discovery.uri=http://localhost:8001
    EOF

    cat << 'EOF' > etc/node1.properties
    node.environment=test
    node.id=671d18f9-dd0f-412d-b18c-fe6d7989b040
    node.data-dir=/usr/local/Cellar/presto/0.196/data/node1
    EOF

    cat << 'EOF' > etc/node2.properties
    node.environment=test
    node.id=e72fdd91-a135-4936-9a3e-f888c5106ed9
    node.data-dir=/usr/local/Cellar/presto/0.196/data/node2
    EOF

    cat << 'EOF' > etc/node3.properties
    node.environment=test
    node.id=6ab76715-1812-4093-95cf-1945f4cfefe3
    node.data-dir=/usr/local/Cellar/presto/0.196/data/node3
    EOF


    p.s. If you want to restrict operation, please add access-control.properties as below, only permit read operation.

    cat << 'EOF' > etc/access-control.properties
    access-control.name=read-only
    EOF


    3.start presto server

    bin/launcher start --config=etc/config1.properties --node-config=etc/node1.properties
    bin/launcher start --config=etc/config2.properties --node-config=etc/node2.properties
    bin/launcher start --config=etc/config3.properties --node-config=etc/node3.properties


    4.downlaod cli

    wget https://repo1.maven.org/maven2/com/facebook/presto/presto-cli/0.196/presto-cli-0.196-executable.jar -O bin/presto-cli
    chmod +x bin/presto-cli


    5.create catalogs

    cat << 'EOF' > etc/catalog/mysql.properties
    connector.name=mysql
    connection-url=jdbc:mysql://localhost:3306?useSSL=false
    connection-user=presto
    connection-password=presto
    EOF

    cat << 'EOF' > etc/catalog/hive.properties
    connector.name=hive-hadoop2
    hive.metastore.uri=thrift://localhost:9083
    EOF


    6.connect

    bin/presto-cli --server localhost:8001 --catalog hive

    presto> show catalogs;
     Catalog
    ---------
     hive
     mysql
     system
    (3 rows)

    Query 20180318_045410_00013_sq83e, FINISHED, 1 node
    Splits: 1 total, 1 done (100.00%)
    0:00 [0 rows, 0B] [0 rows/s, 0B/s]

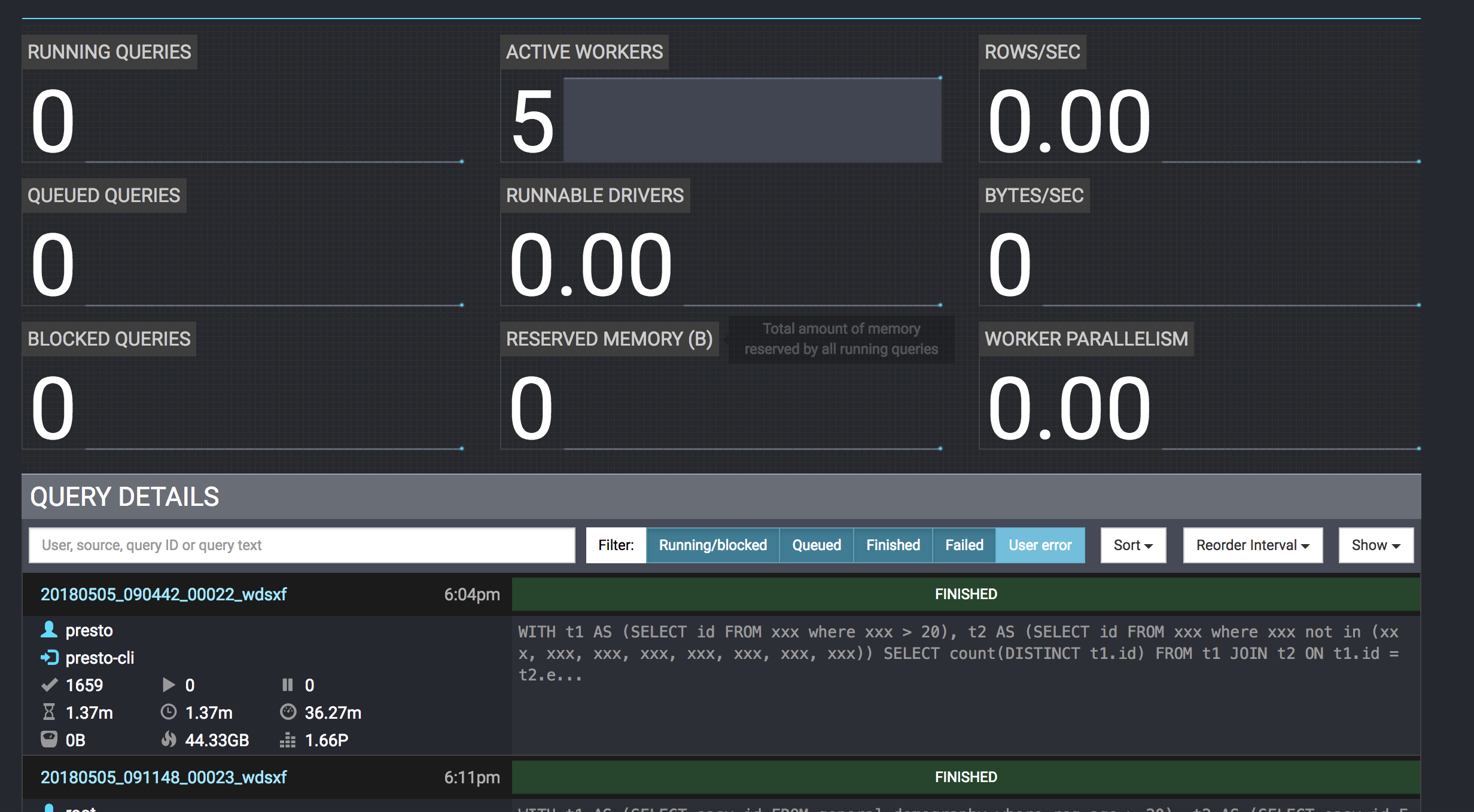

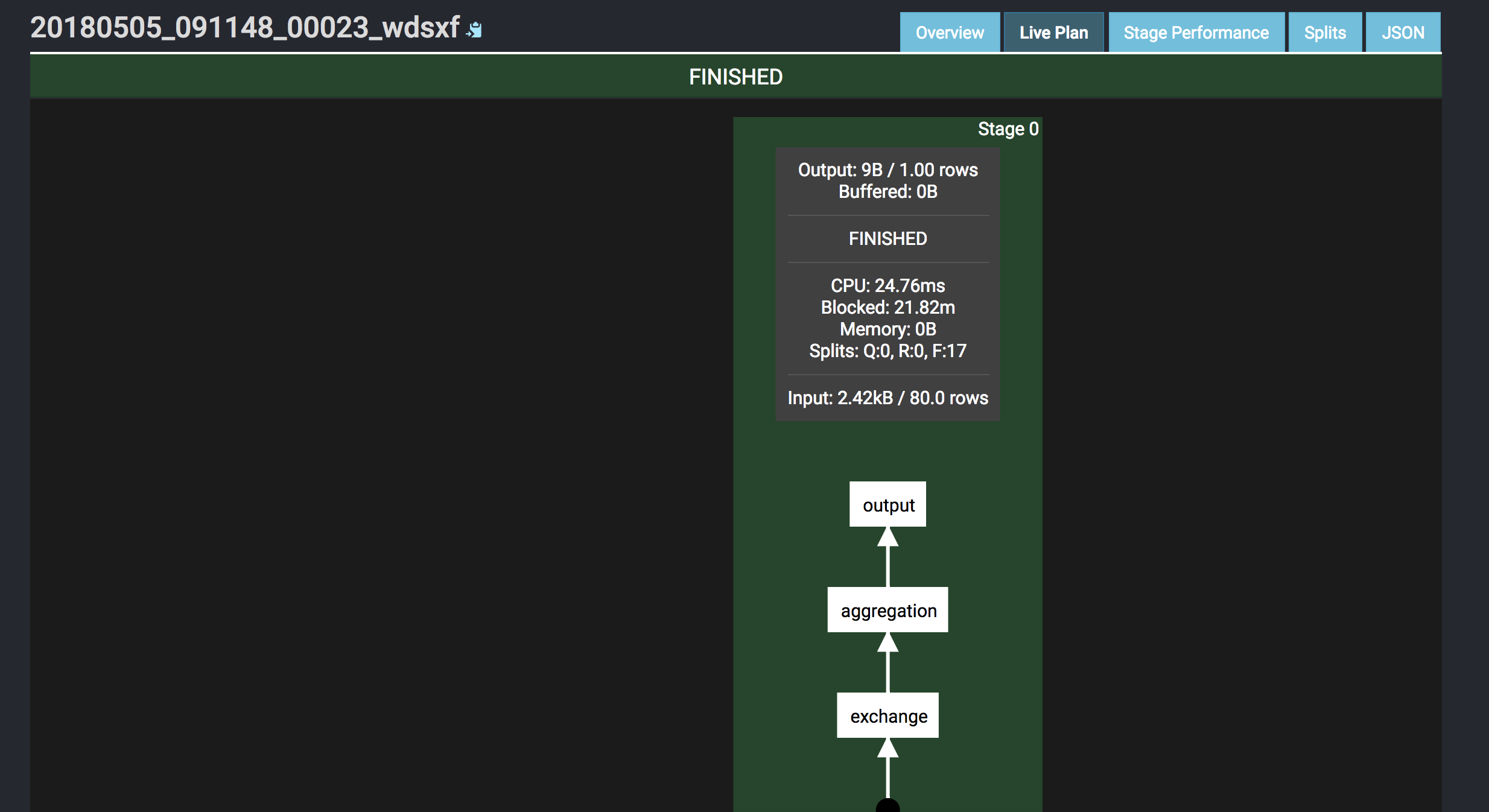

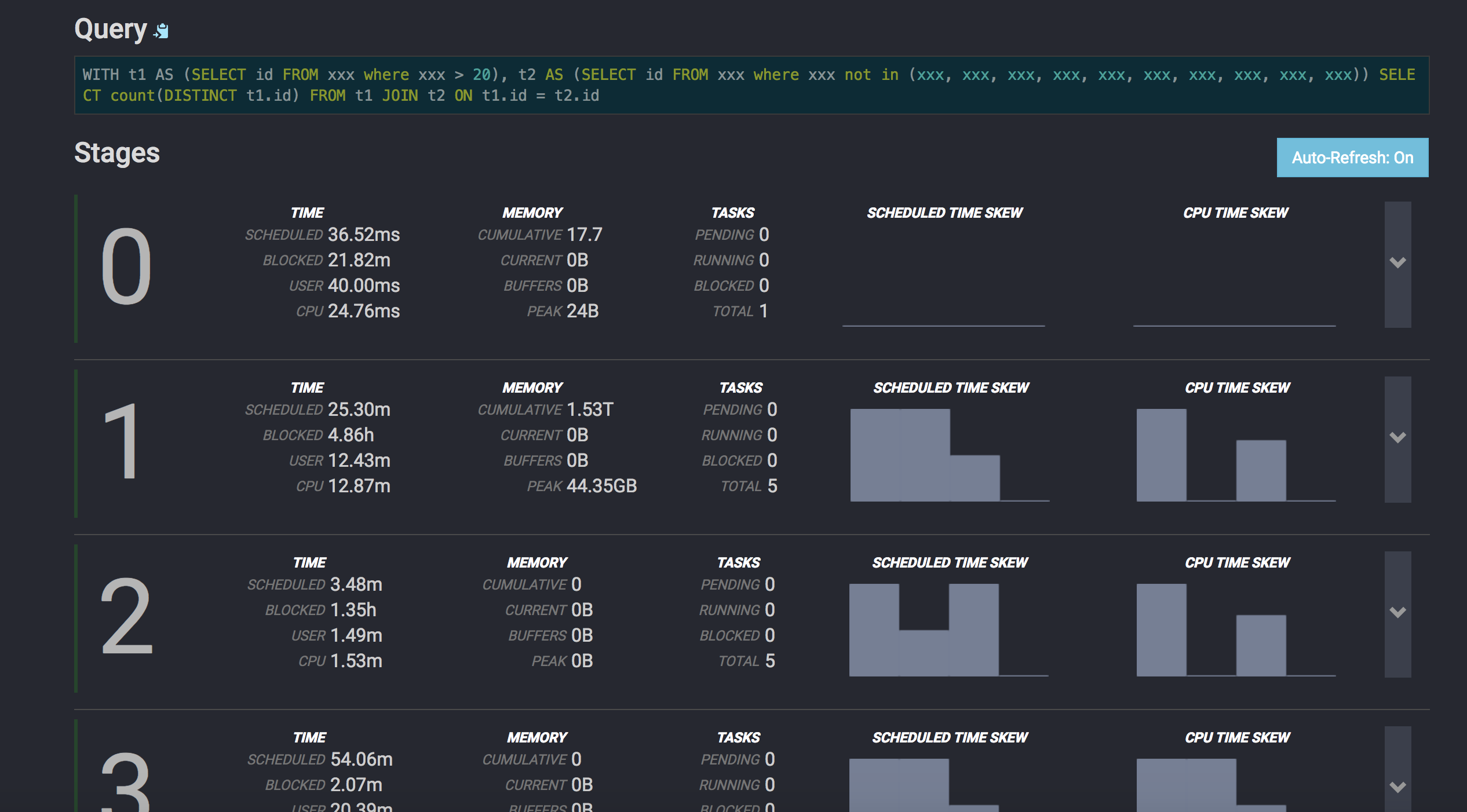

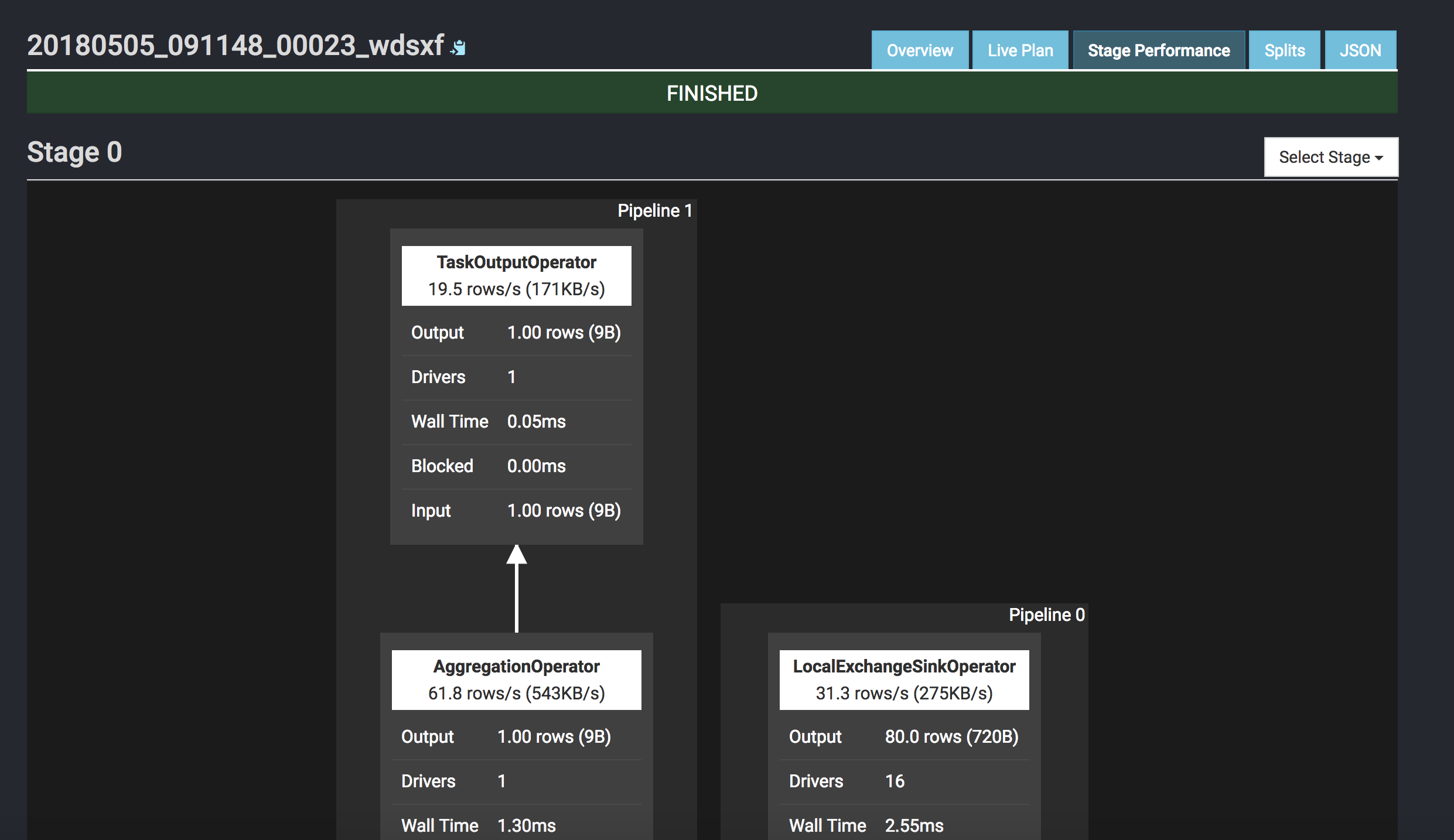

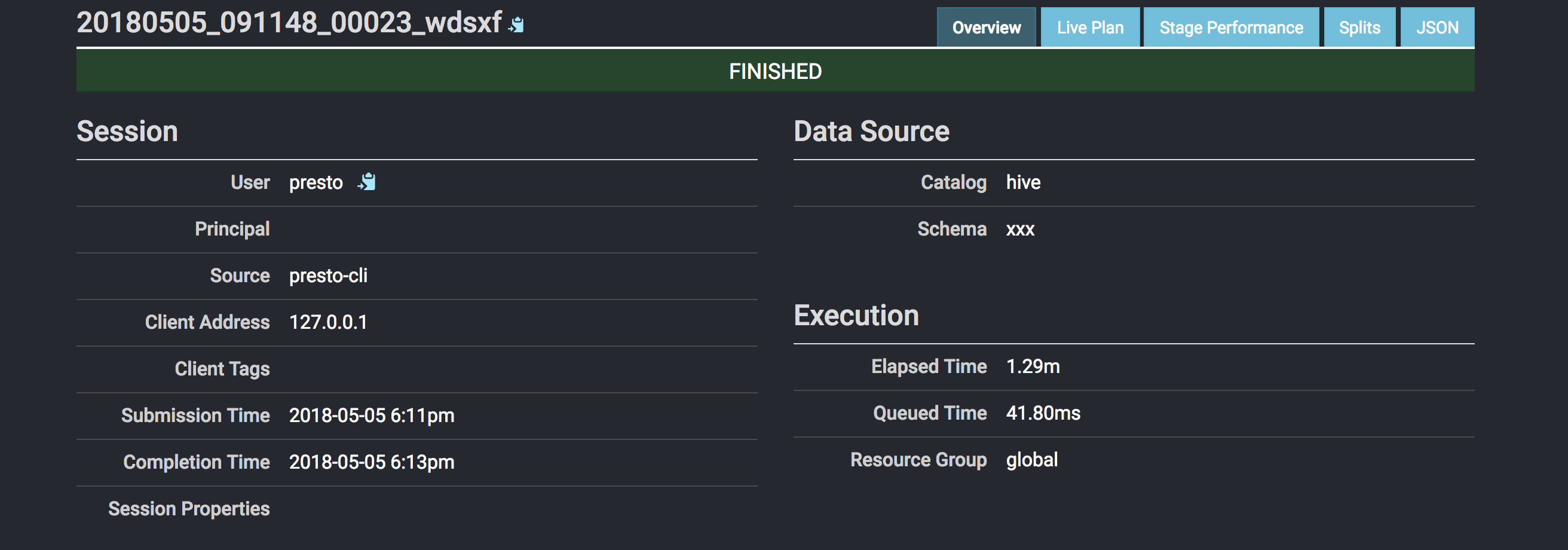

    Screenshot:


    P.S. If build cluster, pay attention to below items:

    1.node.id in node.properties in every node must be unique in the cluster, you could generate it by uuid/uuidgen.

    2.query.max-memory-per-node in config.properties better to be half of -Xmx in jvm.config.


  • Wang 22:39 on 2018-03-18 Permalink | Reply
    Tags: , logstash

    [ELK] Configure logstash

    Recently I need do some statistic, so I choose ELK to build it. I will introduce about how to clean logs and send the logs to elasticsearch by logstash.

    Logstash Version: 5.6.6

    Firstly add a new configuration file named xxx.conf under config directory, the content are as below, please replace “xxx” with your business.

    input {
        file {
            path => "/**/xxx.log"
            codec => plain {
                charset => "UTF-8"
            }
            tags => ["xxx"]
        }
        file {
            path => "/**/xxx.log"
            codec => plain {
                charset => "UTF-8"
            }
            tags => ["xxx"]
        }
    }

    filter {
        if "xxx" in [tags] {
            dissect {
                mapping => {
                    "message" => "%{timestamp} - [%{thread}] - [%{level}] - [%{class}] - xxx:%{xxx}, xxx:%{xxx}, xxx:%{xxx}, xxx:%{xxx}, xxx:%{xxx}, xxx:%{xxx}, xxx:%{xxx}, xxx:%{xxx}"
                }
            }
        }
        if "xxx" in [tags] {
            dissect {
                mapping => {
                    "message" => "%{timestamp} - [%{thread}] - [%{level}] - [%{class}] - xxx:%{xxx}, xxx:%{xxx}, xxx:%{xxx}, xxx:%{xxx}, xxx:%{xxx}, xxx:%{xxx}, xxx:%{xxx}, xxx:%{xxx}, xxx:%{xxx}, xxx:%{xxx}, xxx:%{xxx}, xxx:%{xxx}, xxx:%{xxx}"
                }
            }
        }
    }

    #replace @timestamp
    #filter {
    #date {
    #match => ["timestamp", "yyyy-MM-dd HH:mm:ss,SSS"]
    #target => ["@timestamp"]
    #}
    #}

    output {
        if "xxx" in [tags] {
            elasticsearch {
                index => "xxx"
                hosts => ["http://xxx:9200"]
            }
        }
        if "xxx" in [tags] {
            elasticsearch {
                index => "xxx"
                hosts => ["http://xxx:9200"]
            }
        }
    }


    Then start logstash with this configuration file

    bin/logstash -f config/xxx.conf


    After this, please configure kibana dashborad, and you will get some cool charts.

    P.S.

    There are many kinds of input/filter/output, like jdbc/redis/kafka/mongodb, please refer to the official document.


    If you are familiar with grok filter, you can also filter logs as below:

    filter {
        grok {
            match => {
                "message" => "%{TIMESTAMP_ISO8601:timestamp}%{SPACE}-%{SPACE}[.*]%{SPACE}-%{SPACE}xxx:%{GREEDYDATA:xxx},%{SPACE}xxx:%{GREEDYDATA:xxx},%{SPACE}xxx:%{GREEDYDATA:xxx},%{SPACE}xxx:%{GREEDYDATA:xxx},%{SPACE}xxx:%{GREEDYDATA:xxx},%{SPACE}xxx:%{GREEDYDATA:xxx},%{SPACE}xxx:%{GREEDYDATA:xxx},%{SPACE}xxx:%{GREEDYDATA:xxx}"
            }
        }
    }


  • Wang 20:24 on 2018-03-16 Permalink | Reply
    Tags: , ,

    [Sqoop2] Notebook

    Recently I tested sqoop2 which has many new features compared to sqoop1, about the comparision, I think you could check here and stackoverflow, I will introduce about the operation manual.

    1.install

    wget http://ftp.jaist.ac.jp/pub/apache/sqoop/1.99.7/sqoop-1.99.7-bin-hadoop200.tar.gz
    tar -vzxf sqoop-1.99.7-bin-hadoop200.tar.gz && cd sqoop-1.99.7-bin-hadoop200


    2.replace @LOGDIR@/@BASEDIR@ in sqoop.properties

    3.download mysql driver into server/lib

    4.configure proxy user in core-site.xml

    <property>
        <name>hadoop.proxyuser.sqoop2.hosts</name>
        <value>*</value>
    </property>
    <property>
        <name>hadoop.proxyuser.sqoop2.groups</name>
        <value>*</value>
    </property>


    5.verify & start sqoop2 server

    bin/sqoop2-tool verify
    bin/sqoop2-server start


    6.start client & test

    bin/sqoop2-shell


    7.show the connectors

    sqoop:000> show connector
    +------------------------+---------+------------------------------------------------------------+----------------------+
    | Name | Version | Class | Supported Directions |
    +------------------------+---------+------------------------------------------------------------+----------------------+
    | generic-jdbc-connector | 1.99.7 | org.apache.sqoop.connector.jdbc.GenericJdbcConnector | FROM/TO |
    | kite-connector | 1.99.7 | org.apache.sqoop.connector.kite.KiteConnector | FROM/TO |
    | oracle-jdbc-connector | 1.99.7 | org.apache.sqoop.connector.jdbc.oracle.OracleJdbcConnector | FROM/TO |
    | ftp-connector | 1.99.7 | org.apache.sqoop.connector.ftp.FtpConnector | TO |
    | hdfs-connector | 1.99.7 | org.apache.sqoop.connector.hdfs.HdfsConnector | FROM/TO |
    | kafka-connector | 1.99.7 | org.apache.sqoop.connector.kafka.KafkaConnector | TO |
    | sftp-connector | 1.99.7 | org.apache.sqoop.connector.sftp.SftpConnector | TO |
    +------------------------+---------+------------------------------------------------------------+----------------------+


    8.create links & show links

    sqoop:000> create link -connector generic-jdbc-connector
    sqoop:000> create link -connector hdfs-connector

    sqoop:000> show link
    +-------------+------------------------+---------+
    | Name | Connector Name | Enabled |
    +-------------+------------------------+---------+
    | mysql-local | generic-jdbc-connector | true |
    | hdfs-local | hdfs-connector | true |
    +-------------+------------------------+---------+

    sqoop:000> show link --all
    2 link(s) to show:
    link with name mysql-local (Enabled: true, Created by hongmeng.wang at 3/1/18 10:56 AM, Updated by hongmeng.wang at 3/1/18 12:51 PM)
    Using Connector generic-jdbc-connector with name {1}
    Database connection
    Driver class: com.mysql.jdbc.Driver
    Connection String: jdbc:mysql://localhost:3306
    Username: root
    Password:
    Fetch Size: 100
    Connection Properties:
    protocol = tcp
    useUnicode = true
    characterEncoding = utf-8
    autoReconnect = true
    SQL Dialect
    Identifier enclose: (blank, if use default, will get error)
    link with name hdfs-local (Enabled: true, Created by hongmeng.wang at 3/1/18 10:58 AM, Updated by hongmeng.wang at 3/1/18 12:54 PM)
    Using Connector hdfs-connector with name {1}
    HDFS cluster
    URI: hdfs://localhost:9000
    Conf directory: /usr/local/Cellar/hadoop/2.8.2/libexec/etc/hadoop
    Additional configs::


    9.create job & show job

    sqoop:000> create job -f "mysql-local" -t "hdfs-local"

    sqoop:000> show job
    +----+----------------------+--------------------------------------+-----------------------------+---------+
    | Id | Name | From Connector | To Connector | Enabled |
    +----+----------------------+--------------------------------------+-----------------------------+---------+
    | 1 | mysql-2-hdfs-t1 | mysql-local (generic-jdbc-connector) | hdfs-local (hdfs-connector) | true |
    +----+----------------------+--------------------------------------+-----------------------------+---------+

    sqoop:000> show job --all
    1 job(s) to show:
    Job with name mysql-2-hdfs-segment (Enabled: true, Created by hongmeng.wang at 3/1/18 11:06 AM, Updated by hongmeng.wang at 3/1/18 11:39 AM)
    Throttling resources
    Extractors:
    Loaders:
    Classpath configuration
    Extra mapper jars:
    From link: mysql-local
    Database source
    Schema name: test
    Table name: t1
    SQL statement:
    Column names:
    Partition column: id
    Partition column nullable:
    Boundary query:
    Incremental read
    Check column:
    Last value:
    To link: hdfs-local
    Target configuration
    Override null value: true
    Null value:
    File format: TEXT_FILE
    Compression codec: NONE
    Custom codec:
    Output directory: /sqoop/mysql/test
    Append mode:


    10.start job & check job’s status

    sqoop:000> start job -name mysql-2-hdfs-segment
    Submission details
    Job Name: mysql-2-hdfs-segment
    Server URL: http://localhost:12000/sqoop/
    Created by: sqoop2
    Creation date: 2018-03-01 13:53:37 JST
    Lastly updated by: sqoop2
    External ID: job_1519869491258_0001
    http://localhost:8088/proxy/application_1519869491258_0001/
    2018-03-01 13:53:37 JST: BOOTING - Progress is not available

    sqoop:000> status job -n mysql-2-hdfs-segment
    Submission details
    Job Name: mysql-2-hdfs-segment
    Server URL: http://localhost:12000/sqoop/
    Created by: sqoop2
    Creation date: 2018-03-01 14:01:54 JST
    Lastly updated by: sqoop2
    External ID: job_1519869491258_0002
    http://localhost:8088/proxy/application_1519869491258_0002/
    2018-03-01 14:03:31 JST: BOOTING - 0.00 %


    Issues

    1.modify “org.apache.sqoop.submission.engine.mapreduce.configuration.directory=”directory of hadoop configuration” in conf/sqoop.properties if you got below error when executing bin/sqoop2-tool verify

    Exception in thread "main" java.lang.RuntimeException: Failure in server initialization
    at org.apache.sqoop.core.SqoopServer.initialize(SqoopServer.java:68)
    at org.apache.sqoop.server.SqoopJettyServer.<init>(SqoopJettyServer.java:67)
    at org.apache.sqoop.server.SqoopJettyServer.main(SqoopJettyServer.java:177)
    Caused by: org.apache.sqoop.common.SqoopException: MAPREDUCE_0002:Failure on submission engine initialization - Invalid Hadoop configuration directory (not a directory or permission issues): /etc/hadoop/conf/
    at org.apache.sqoop.submission.mapreduce.MapreduceSubmissionEngine.initialize(MapreduceSubmissionEngine.java:97)
    at org.apache.sqoop.driver.JobManager.initialize(JobManager.java:257)
    at org.apache.sqoop.core.SqoopServer.initialize(SqoopServer.java:64)
    ... 2 more


    2.check $CLASSPATH and $HADOOP_CLASSPATH, maybe some jars conflict if got below error:

    Caused by: java.lang.SecurityException: sealing violation: package org.apache.derby.impl.services.locks is sealed
    at java.net.URLClassLoader.getAndVerifyPackage(URLClassLoader.java:399)
    at java.net.URLClassLoader.definePackageInternal(URLClassLoader.java:419)
    at java.net.URLClassLoader.defineClass(URLClassLoader.java:451)
    at java.net.URLClassLoader.access$100(URLClassLoader.java:73)
    at java.net.URLClassLoader$1.run(URLClassLoader.java:368)
    at java.net.URLClassLoader$1.run(URLClassLoader.java:362)
    at java.security.AccessController.doPrivileged(Native Method)
    at java.net.URLClassLoader.findClass(URLClassLoader.java:361)
    at java.lang.ClassLoader.loadClass(ClassLoader.java:424)
    at sun.misc.Launcher$AppClassLoader.loadClass(Launcher.java:335)
    at java.lang.ClassLoader.loadClass(ClassLoader.java:357)
    at java.lang.ClassLoader.defineClass1(Native Method)
    at java.lang.ClassLoader.defineClass(ClassLoader.java:763)
    at java.security.SecureClassLoader.defineClass(SecureClassLoader.java:142)
    at java.net.URLClassLoader.defineClass(URLClassLoader.java:467)
    at java.net.URLClassLoader.access$100(URLClassLoader.java:73)
    at java.net.URLClassLoader$1.run(URLClassLoader.java:368)
    at java.net.URLClassLoader$1.run(URLClassLoader.java:362)
    at java.security.AccessController.doPrivileged(Native Method)
    at java.net.URLClassLoader.findClass(URLClassLoader.java:361)
    at java.lang.ClassLoader.loadClass(ClassLoader.java:424)
    at sun.misc.Launcher$AppClassLoader.loadClass(Launcher.java:335)
    at java.lang.ClassLoader.loadClass(ClassLoader.java:357)
    at java.lang.Class.forName0(Native Method)
    at java.lang.Class.forName(Class.java:264)
    at org.apache.derby.impl.services.monitor.BaseMonitor.getImplementations(Unknown Source)
    at org.apache.derby.impl.services.monitor.BaseMonitor.getDefaultImplementations(Unknown Source)
    at org.apache.derby.impl.services.monitor.BaseMonitor.runWithState(Unknown Source)
    at org.apache.derby.iampl.services.monitor.FileMonitor.<init>(Unknown Source)
    at org.apache.derby.iapi.services.monitor.Monitor.startMonitor(Unknown Source)
    at org.apache.derby.iapi.jdbc.JDBCBoot.boot(Unknown Source)
    at org.apache.derby.jdbc.EmbeddedDriver.boot(Unknown Source)
    at org.apache.derby.jdbc.EmbeddedDriver.<clinit>(Unknown Source)
    ... 11 more


  • Wang 23:12 on 2018-03-14 Permalink | Reply
    Tags: , Yarn

    [Yarn] Configure queue and capacity

    Modify capacity-scheduler.xml under $HADOOP_CONF_DIR, and I configured 3 queues: default, business, platform

    <configuration>
        <property>
            <name>yarn.scheduler.capacity.maximum-applications</name>
            <value>10000</value>
        </property>
        <property>
            <name>yarn.scheduler.capacity.maximum-am-resource-percent</name>
            <value>0.1</value>
        </property>
        <property>
            <name>yarn.scheduler.capacity.resource-calculator</name>
            <value>org.apache.hadoop.yarn.util.resource.DefaultResourceCalculator</value>
        </property>
        <property>
            <name>yarn.scheduler.capacity.root.queues</name>
            <value>default,business,platform</value>
        </property>
        <property>
            <name>yarn.scheduler.capacity.root.default.capacity</name>
            <value>50</value>
        </property>
        <property>
            <name>yarn.scheduler.capacity.root.default.user-limit-factor</name>
            <value>1</value>
        </property>
        <property>
            <name>yarn.scheduler.capacity.root.default.maximum-capacity</name>
            <value>50</value>
        </property>
        <property>
            <name>yarn.scheduler.capacity.root.default.state</name>
            <value>RUNNING</value>
        </property>
        <property>
            <name>yarn.scheduler.capacity.root.default.acl_submit_applications</name>
            <value>*</value>
        </property>
        <property>
            <name>yarn.scheduler.capacity.root.default.acl_administer_queue</name>
            <value>*</value>
        </property>
        <property>
            <name>yarn.scheduler.capacity.root.business.capacity</name>
            <value>30</value>
        </property>
        <property>
            <name>yarn.scheduler.capacity.root.business.user-limit-factor</name>
            <value>1</value>
        </property>
        <property>
            <name>yarn.scheduler.capacity.root.business.maximum-capacity</name>
            <value>30</value>
        </property>
        <property>
            <name>yarn.scheduler.capacity.root.business.state</name>
            <value>RUNNING</value>
        </property>
        <property>
            <name>yarn.scheduler.capacity.root.business.acl_submit_applications</name>
            <value>*</value>
        </property>
        <property>
            <name>yarn.scheduler.capacity.root.business.acl_administer_queue</name>
            <value>*</value>
        </property>
        <property>
            <name>yarn.scheduler.capacity.root.platform.capacity</name>
            <value>20</value>
        </property>
        <property>
            <name>yarn.scheduler.capacity.root.platform.user-limit-factor</name>
            <value>1</value>
        </property>
        <property>
            <name>yarn.scheduler.capacity.root.platform.maximum-capacity</name>
            <value>20</value>
        </property>
        <property>
            <name>yarn.scheduler.capacity.root.platform.state</name>
            <value>RUNNING</value>
        </property>
        <property>
            <name>yarn.scheduler.capacity.root.platform.acl_submit_applications</name>
            <value>*</value>
        </property>
        <property>
            <name>yarn.scheduler.capacity.root.platform.acl_administer_queue</name>
            <value>*</value>
        </property>
        <property>
            <name>yarn.scheduler.capacity.node-locality-delay</name>
            <value>40</value>
        </property>
        <property>
            <name>yarn.scheduler.capacity.queue-mappings</name>
            <value></value>
        </property>
        <property>
            <name>yarn.scheduler.capacity.queue-mappings-override.enable</name>
            <value>false</value>
        </property>
        <property>
            <name>yarn.scheduler.capacity.per-node-heartbeat.maximum-offswitch-assignments</name>
            <value>1</value>
        </property>
    </configuration>


  • Wang 21:33 on 2018-03-11 Permalink | Reply
    Tags: , , , , ,

    [Sqoop1] Interact MySQL with HDFS/Hive/HBase

    install sqoop1 on mac

    brew install sqoop


    #if you have set env profiles, uncomment profiles in conf/sqoop-env.sh

    1.MySQL -> HDFS

    1.1.import table

    sqoop import --connect jdbc:mysql://localhost/test --direct --username root --P --table t1 --warehouse-dir /mysql/test --fields-terminated-by ','


    1.2.import schema

    sqoop import-all-tables --connect jdbc:mysql://localhost/test --direct --username root -P --warehouse-dir /mysql/test --fields-terminated-by ','


    2.MySQL -> Hive

    2.1.import definition

    sqoop create-hive-table --connect jdbc:mysql://localhost/test --table t1 --username root --P --hive-database test


    2.2.import table

    sqoop import --connect jdbc:mysql://localhost/test --username root --P --table t1 --hive-import --hive-database test --hive-table t1 --fields-terminated-by ','


    2.3.import schema

    sqoop import-all-tables --connect jdbc:mysql://localhost/test --username root --P --hive-import --hive-database test --fields-terminated-by ','


    3.MySQL -> HBase

    3.1.definition

    sqoop import --connect jdbc:mysql://localhost/test --username root --P --table t1


    3.2.import table, need create table in hbase first

    sqoop import --connect jdbc:mysql://localhost/test --username root --P --table t1 --hbase-bulkload --hbase-table test.t1 --column-family basic --fields-terminated-by ','


    3.3.import table without creating table in hbase, but pay attention to hbase/sqoop version

    sqoop import --connect jdbc:mysql://localhost/test --username root --P --table t1 --hbase-bulkload --hbase-create-table --hbase-table test.t1 --column-family basic --fields-terminated-by ','


    4.HDFS/Hive/HBase -> MySQL

    sqoop export --connect jdbc:mysql://localhost/test --username root --P --table t1 --export-dir /user/hive/warehouse/test.db/t1 --fields-terminated-by ','


  • Wang 22:21 on 2018-03-09 Permalink | Reply
    Tags: ,

    [HBase] No columns to insert

    When I load data from hdfs to hbase, I got error:

    Caused by: java.lang.IllegalArgumentException: No columns to insert
        at org.apache.hadoop.hbase.client.HTable.validatePut(HTable.java:1505)
        at org.apache.hadoop.hbase.client.BufferedMutatorImpl.validatePut(BufferedMutatorImpl.java:147)
        at org.apache.hadoop.hbase.client.BufferedMutatorImpl.doMutate(BufferedMutatorImpl.java:134)
        at org.apache.hadoop.hbase.client.BufferedMutatorImpl.mutate(BufferedMutatorImpl.java:98)
        at org.apache.hadoop.hbase.client.HTable.put(HTable.java:1028)
        at org.apache.hadoop.hive.hbase.HiveHBaseTableOutputFormat$MyRecordWriter.write(HiveHBaseTableOutputFormat.java:146)
        at org.apache.hadoop.hive.hbase.HiveHBaseTableOutputFormat$MyRecordWriter.write(HiveHBaseTableOutputFormat.java:117)
        at org.apache.hadoop.hive.ql.io.HivePassThroughRecordWriter.write(HivePassThroughRecordWriter.java:40)
        at org.apache.hadoop.hive.ql.exec.FileSinkOperator.process(FileSinkOperator.java:762)
        at org.apache.hadoop.hive.ql.exec.Operator.forward(Operator.java:897)
        at org.apache.hadoop.hive.ql.exec.SelectOperator.process(SelectOperator.java:95)
        at org.apache.hadoop.hive.ql.exec.Operator.forward(Operator.java:897)
        at org.apache.hadoop.hive.ql.exec.TableScanOperator.process(TableScanOperator.java:130)
        at org.apache.hadoop.hive.ql.exec.MapOperator$MapOpCtx.forward(MapOperator.java:148)
        at org.apache.hadoop.hive.ql.exec.MapOperator.process(MapOperator.java:547)
        ... 9 more


    After reading the document, it said that hbase doesn’t support null value, I checked hdfs files, it indeed contained null value in some properties.

    So I modified the data and reloaded to hbase, I didn’t get the error any more.


    • Black Hairstyles 04:11 on 2020-11-28 Permalink | Reply

      Thanks , I have just been looking for information about this subject for a while and yours is the best I have came upon so far. But, what about the conclusion? Are you certain about the source?

      Like

    • Hairstyles 10:13 on 2020-12-03 Permalink | Reply

      I am constantly looking online for articles that can assist me. Thank you!

      Like

    • Crave Freebies 06:34 on 2020-12-07 Permalink | Reply

      Magnificent goods from you, man. I’ve understand your stuff previous to and you’re just extremely fantastic. I really like what you have acquired here, certainly like what you are saying and the way in which you say it. You make it enjoyable and you still take care of to keep it sensible. I can not wait to read much more from you. This is really a great site.

      Like

    • I Fashion Styles 19:11 on 2020-12-07 Permalink | Reply

      Have you ever thought about including a little bit more than just your articles? I mean, what you say is important and all. Nevertheless imagine if you added some great pictures or videos to give your posts more, “pop”! Your content is excellent but with pics and clips, this blog could certainly be one of the most beneficial in its niche. Amazing blog!

      Like

  • Wang 20:37 on 2018-03-06 Permalink | Reply
    Tags: , , , ,

    [Performance Test] MR vs Tez(2)

    I test the performance of MR vs Tez again on cluster, I created a new table which contains 28,872,974 rows, below are cluster servers:

    Host

    OS

    Memory

    CPU

    Disk

    Region

    master.c.ambari-195807.internal

    CentOS 7

    13 GB

    Intel Ivy Bridge: 2

    200G

    asia-east1-a

    slave1.c.ambari-195807.internal

    CentOS 7

    13 GB

    Intel Ivy Bridge: 2

    200G

    asia-east1-a

    slave2.c.ambari-195807.internal

    CentOS 7

    13 GB

    Intel Ivy Bridge: 2

    200G

    asia-east1-a

    slave3.c.ambari-195807.internal

    CentOS 7

    13 GB

    Intel Ivy Bridge: 2

    200G

    asia-east1-a

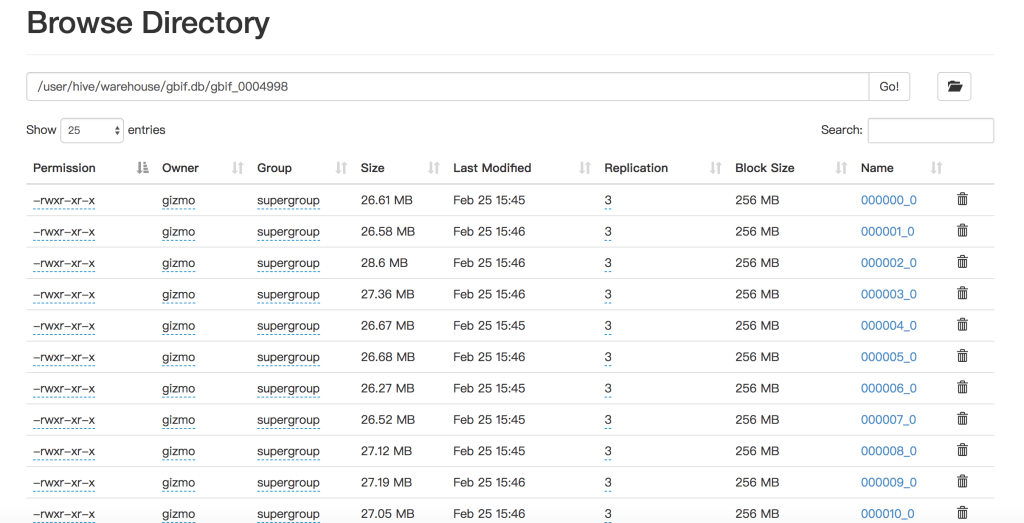

    1.MR

    1.1.create table

    hive> CREATE TABLE gbif.gbif_0004998
        > STORED AS ORC
        > TBLPROPERTIES("orc.compress"="snappy")
        > AS SELECT * FROM gbif.gbif_0004998_ori;
    WARNING: Hive-on-MR is deprecated in Hive 2 and may not be available in the future versions. Consider using a different execution engine (i.e. spark, tez) or using Hive 1.X releases.
    Query ID = gizmo_20180225064259_8df29800-b260-48f5-a409-80d6ea5200ad
    Total jobs = 1
    Launching Job 1 out of 1
    Number of reduce tasks is set to 0 since there's no reduce operator
    Starting Job = job_1519536795015_0001, Tracking URL = http://master.c.ambari-195807.internal:8088/proxy/application_1519536795015_0001/
    Kill Command = /opt/apps/hadoop-2.8.3/bin/hadoop job  -kill job_1519536795015_0001
    Hadoop job information for Stage-1: number of mappers: 43; number of reducers: 0
    2018-02-25 06:43:15,110 Stage-1 map = 0%,  reduce = 0%
    2018-02-25 06:44:15,419 Stage-1 map = 0%,  reduce = 0%, Cumulative CPU 231.6 sec
    2018-02-25 06:44:36,386 Stage-1 map = 2%,  reduce = 0%, Cumulative CPU 380.45 sec
    2018-02-25 06:44:37,810 Stage-1 map = 3%,  reduce = 0%, Cumulative CPU 386.09 sec
    2018-02-25 06:44:41,695 Stage-1 map = 5%,  reduce = 0%, Cumulative CPU 422.02 sec
    ...
    ...
    2018-02-25 06:47:36,112 Stage-1 map = 97%,  reduce = 0%, Cumulative CPU 1388.9 sec
    2018-02-25 06:47:38,185 Stage-1 map = 98%,  reduce = 0%, Cumulative CPU 1392.1 sec
    2018-02-25 06:47:45,434 Stage-1 map = 100%,  reduce = 0%, Cumulative CPU 1402.14 sec
    MapReduce Total cumulative CPU time: 23 minutes 22 seconds 140 msec
    Ended Job = job_1519536795015_0001
    Stage-4 is selected by condition resolver.
    Stage-3 is filtered out by condition resolver.
    Stage-5 is filtered out by condition resolver.
    Moving data to directory hdfs://master.c.ambari-195807.internal:9000/user/hive/warehouse/gbif.db/.hive-staging_hive_2018-02-25_06-42-59_672_2925216554228494176-1/-ext-10002
    Moving data to directory hdfs://master.c.ambari-195807.internal:9000/user/hive/warehouse/gbif.db/gbif_0004998
    MapReduce Jobs Launched:
    Stage-Stage-1: Map: 43   Cumulative CPU: 1402.14 sec   HDFS Read: 11519083564 HDFS Write: 1210708016 SUCCESS
    Total MapReduce CPU Time Spent: 23 minutes 22 seconds 140 msec
    OK
    Time taken: 288.681 seconds


    1.2.query by on condition

    hive> select count(*) as total from gbif_0004998 where mediatype = 'STILLIMAGE';
    WARNING: Hive-on-MR is deprecated in Hive 2 and may not be available in the future versions. Consider using a different execution engine (i.e. spark, tez) or using Hive 1.X releases.
    Query ID = gizmo_20180225065438_d2343424-5178-4c44-8b9d-0b28f8b701fa
    Total jobs = 1
    Launching Job 1 out of 1
    Number of reduce tasks determined at compile time: 1
    In order to change the average load for a reducer (in bytes):
      set hive.exec.reducers.bytes.per.reducer=<number>
    In order to limit the maximum number of reducers:
      set hive.exec.reducers.max=<number>
    In order to set a constant number of reducers:
      set mapreduce.job.reduces=<number>
    Starting Job = job_1519536795015_0002, Tracking URL = http://master.c.ambari-195807.internal:8088/proxy/application_1519536795015_0002/
    Kill Command = /opt/apps/hadoop-2.8.3/bin/hadoop job  -kill job_1519536795015_0002
    Hadoop job information for Stage-1: number of mappers: 5; number of reducers: 1
    2018-02-25 06:54:50,078 Stage-1 map = 0%,  reduce = 0%
    2018-02-25 06:55:02,485 Stage-1 map = 40%,  reduce = 0%, Cumulative CPU 21.01 sec
    2018-02-25 06:55:03,544 Stage-1 map = 80%,  reduce = 0%, Cumulative CPU 38.51 sec
    2018-02-25 06:55:06,704 Stage-1 map = 100%,  reduce = 0%, Cumulative CPU 49.23 sec
    2018-02-25 06:55:09,881 Stage-1 map = 100%,  reduce = 100%, Cumulative CPU 51.88 sec
    MapReduce Total cumulative CPU time: 51 seconds 880 msec
    Ended Job = job_1519536795015_0002
    MapReduce Jobs Launched:
    Stage-Stage-1: Map: 5  Reduce: 1   Cumulative CPU: 51.88 sec   HDFS Read: 1936305 HDFS Write: 107 SUCCESS
    Total MapReduce CPU Time Spent: 51 seconds 880 msec
    OK
    2547716
    Time taken: 32.292 seconds, Fetched: 1 row(s)


    1.3.query by two conditions

    hive> select count(*) as total from gbif_0004998 where mediatype = 'STILLIMAGE' and year > 1900;
    WARNING: Hive-on-MR is deprecated in Hive 2 and may not be available in the future versions. Consider using a different execution engine (i.e. spark, tez) or using Hive 1.X releases.
    Query ID = gizmo_20180225081238_766d3707-7eb4-4818-860e-887c48d507ce
    Total jobs = 1
    Launching Job 1 out of 1
    Number of reduce tasks determined at compile time: 1
    In order to change the average load for a reducer (in bytes):
      set hive.exec.reducers.bytes.per.reducer=<number>
    In order to limit the maximum number of reducers:
      set hive.exec.reducers.max=<number>
    In order to set a constant number of reducers:
      set mapreduce.job.reduces=<number>
    Starting Job = job_1519545228015_0002, Tracking URL = http://master.c.ambari-195807.internal:8088/proxy/application_1519545228015_0002/
    Kill Command = /opt/apps/hadoop-2.8.3/bin/hadoop job  -kill job_1519545228015_0002
    Hadoop job information for Stage-1: number of mappers: 5; number of reducers: 1
    2018-02-25 08:17:31,666 Stage-1 map = 0%,  reduce = 0%
    2018-02-25 08:17:43,866 Stage-1 map = 20%,  reduce = 0%, Cumulative CPU 10.58 sec
    2018-02-25 08:17:46,045 Stage-1 map = 60%,  reduce = 0%, Cumulative CPU 34.12 sec
    2018-02-25 08:17:54,996 Stage-1 map = 80%,  reduce = 0%, Cumulative CPU 41.73 sec
    2018-02-25 08:17:57,126 Stage-1 map = 100%,  reduce = 0%, Cumulative CPU 51.37 sec
    2018-02-25 08:17:58,192 Stage-1 map = 100%,  reduce = 100%, Cumulative CPU 53.72 sec
    MapReduce Total cumulative CPU time: 53 seconds 720 msec
    Ended Job = job_1519545228015_0002
    MapReduce Jobs Launched:
    Stage-Stage-1: Map: 5  Reduce: 1   Cumulative CPU: 53.72 sec   HDFS Read: 8334197 HDFS Write: 107 SUCCESS
    Total MapReduce CPU Time Spent: 53 seconds 720 msec
    OK
    2547716
    Time taken: 321.138 seconds, Fetched: 1 row(s)


    2.Tez

    2.1.create table

    hive> CREATE TABLE gbif.gbif_0004998
        > STORED AS ORC
        > TBLPROPERTIES("orc.compress"="snappy")
        > AS SELECT * FROM gbif.gbif_0004998_ori;
    Query ID = gizmo_20180225075657_bae527a7-7cbd-46d9-afbf-70a5adcdee7c
    Total jobs = 1
    Launching Job 1 out of 1
    Status: Running (Executing on YARN cluster with App id application_1519545228015_0001)

    ----------------------------------------------------------------------------------------------
            VERTICES      MODE        STATUS  TOTAL  COMPLETED  RUNNING  PENDING  FAILED  KILLED
    ----------------------------------------------------------------------------------------------
    Map 1 .......... container     SUCCEEDED      1          1        0        0       0       0
    ----------------------------------------------------------------------------------------------
    VERTICES: 01/01  [==========================>>] 100%  ELAPSED TIME: 639.61 s
    ----------------------------------------------------------------------------------------------
    Moving data to directory hdfs://master.c.ambari-195807.internal:9000/user/hive/warehouse/gbif.db/gbif_0004998
    OK
    Time taken: 664.817 seconds


    2.2.query by one condition

    hive> select count(*) as total from gbif_0004998 where mediatype = 'STILLIMAGE';
    Query ID = gizmo_20180225080856_d1f13489-30b0-4045-bdeb-e3e5e085e736
    Total jobs = 1
    Launching Job 1 out of 1
    Status: Running (Executing on YARN cluster with App id application_1519545228015_0001)

    ----------------------------------------------------------------------------------------------
            VERTICES      MODE        STATUS  TOTAL  COMPLETED  RUNNING  PENDING  FAILED  KILLED
    ----------------------------------------------------------------------------------------------
    Map 1 .......... container     SUCCEEDED      5          5        0        0       0       0
    Reducer 2 ...... container     SUCCEEDED      1          1        0        0       0       0
    ----------------------------------------------------------------------------------------------
    VERTICES: 02/02  [==========================>>] 100%  ELAPSED TIME: 17.91 s
    ----------------------------------------------------------------------------------------------
    OK
    2547716
    Time taken: 19.255 seconds, Fetched: 1 row(s)


    2.2.query by two conditions

    hive> select count(*) as total from gbif_0004998 where mediatype = 'STILLIMAGE' and year > 1900;
    Query ID = gizmo_20180225081200_0279f8e6-544b-4573-858b-33f48bf1fa35
    Total jobs = 1
    Launching Job 1 out of 1
    Status: Running (Executing on YARN cluster with App id application_1519545228015_0001)

    ----------------------------------------------------------------------------------------------
            VERTICES      MODE        STATUS  TOTAL  COMPLETED  RUNNING  PENDING  FAILED  KILLED
    ----------------------------------------------------------------------------------------------
    Map 1 .......... container     SUCCEEDED      5          5        0        0       0       0
    Reducer 2 ...... container     SUCCEEDED      1          1        0        0       0       0
    ----------------------------------------------------------------------------------------------
    VERTICES: 02/02  [==========================>>] 100%  ELAPSED TIME: 16.96 s
    ----------------------------------------------------------------------------------------------
    OK
    2547716
    Time taken: 17.635 seconds, Fetched: 1 row(s)


    3.Summary

    Rows: 28,872,974

    TypeCreate TableQuery By One ConditionQuery By Two Conditions
    MR288.681s32.292s321.138s
    Tez664.817s19.255s17.635s

    According to the result, MR is quicker than Tez on creation, but slower than Tez on query, along with query condition’s increase, MR’s query performance became worse.

    But why MR is quicker than Tez on creation, currently I don’t know, need to be investigated later.

    Maybe it has relationship with storage, I have checked the filesystem after the two kinds of creation, it’s different. MR has many small files, but Tez has one much bigger file.

    MR generated files

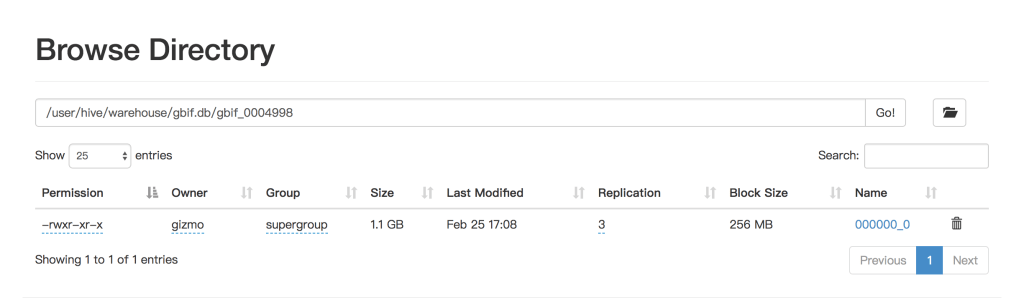

    Tez generated files


c
Compose new post
j
Next post/Next comment
k
Previous post/Previous comment
r
Reply
e
Edit
o
Show/Hide comments
t
Go to top
l
Go to login
h
Show/Hide help
shift + esc
Cancel
%d bloggers like this:
