[ELK] Enable X-Pack in ELK stack 6.3
We konw X-Pack is is an extension that bundles security, monitoring, reporting, and graph capabilities into one package.
From ELK stack 6.3, X-Pack is integrated into Elasticsearch, you can try it by 30-day-trial license. After the trail you could choose buy the license or downgrade to the normal license.
ES
1.Down & Unzip & Enter
wget https://artifacts.elastic.co/downloads/elasticsearch/elasticsearch-6.3.2.tar.gz tar -zvxf elasticsearch-6.3.2.tar.gz && cd elasticsearch-6.3.2
2.Enable monitor & Start
echo "xpack.monitoring.enabled: true" >>config/elasticsearch.yml echo "xpack.security.enabled: true" >>config/elasticsearch.yml echo "xpack.watcher.enabled: true" >>config/elasticsearch.yml echo "xpack.ml.enabled: true" >>config/elasticsearch.yml echo "xpack.graph.enabled: true" >>config/elasticsearch.yml echo "xpack.monitoring.collection.enabled: true" >>config/elasticsearch.yml bin/elasticsearch
Kibana
1.Download & Unzip & Entry
wget wget https://artifacts.elastic.co/downloads/kibana/kibana-6.3.2-darwin-x86_64.tar.gz tar -zvxf kibana-6.3.2-darwin-x86_64.tar.gz && cd kibana-6.3.2-darwin-x86_64
2.Start
bin/kibana

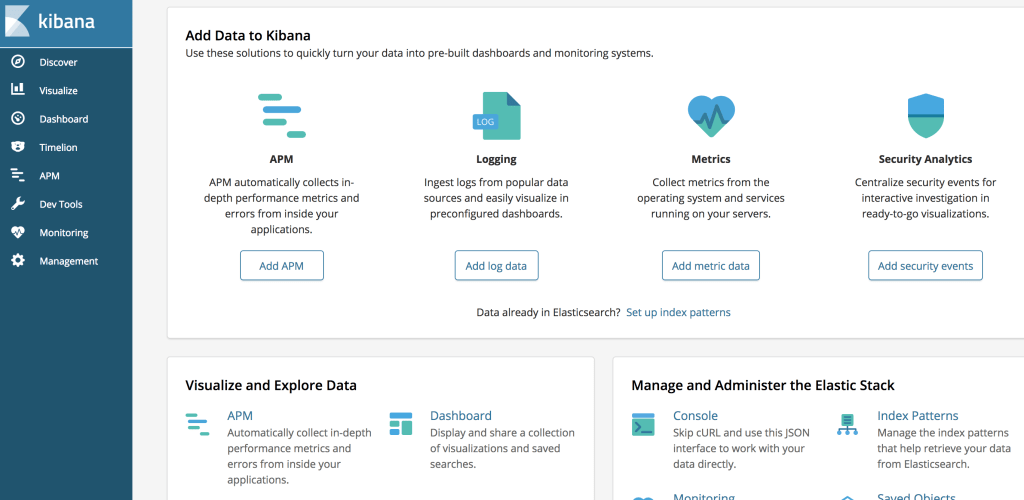

3.Visit kibana, http://localhost:5601, you will see the dashboard, next we will enable 30-day-trail license.

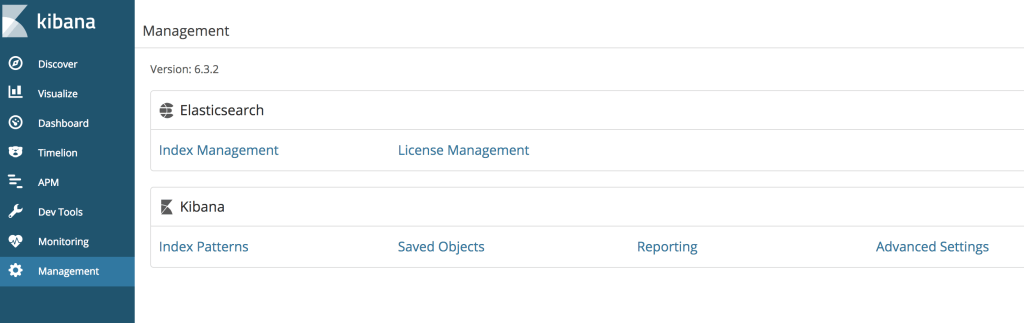

3.1.Click Management on left menu

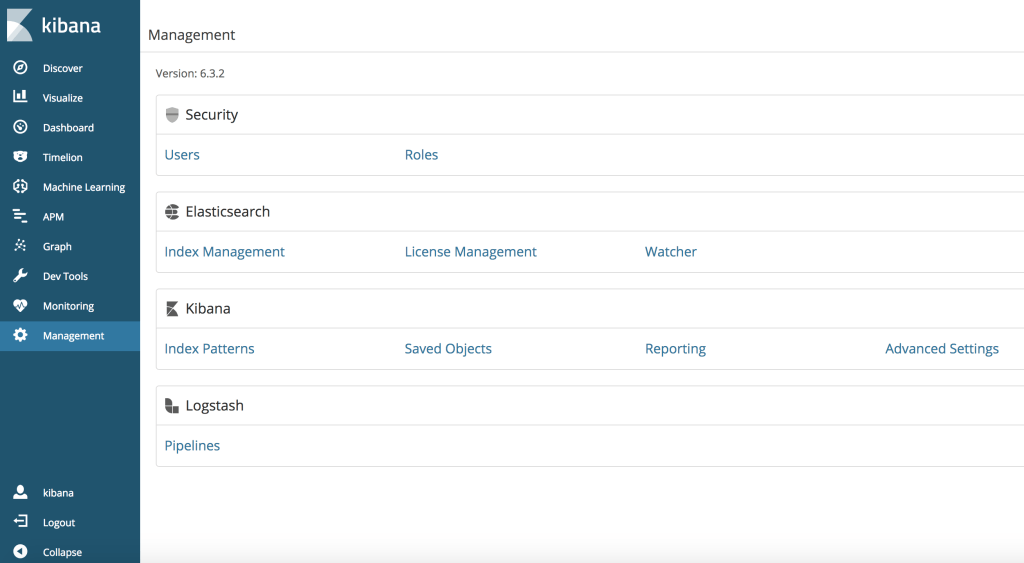

3.2.Click License Management

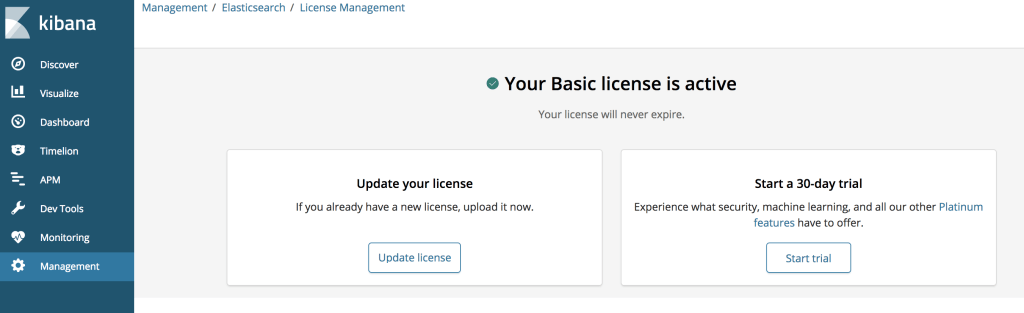

3.3.Click Start trial button

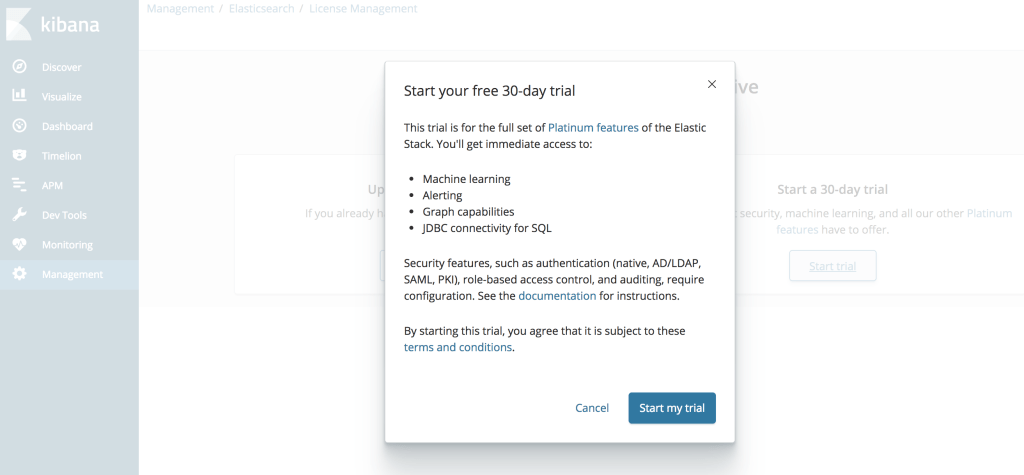

3.4.Click Start my trial button

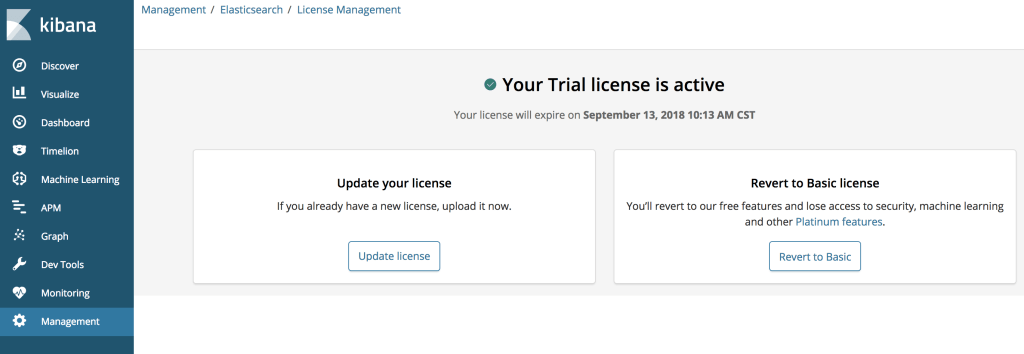

3.5.Start trail license done
X-Pack
1.Enter elasticsearch directory, execute command as below to generate password for users, please choose one
bin/elasticsearch-setup-passwords interactive(you need to enter password for every user) bin/elasticsearch-setup-passwords auto(will generate password for users automatically)
2.Enter kibana directory, stop kibana and set username/password in kibana.yml, then start kibana
echo "elasticsearch.username: kibana" >>config/kibana.yml echo "elasticsearch.password: kibana123" >>config/kibana.yml bin/kibana

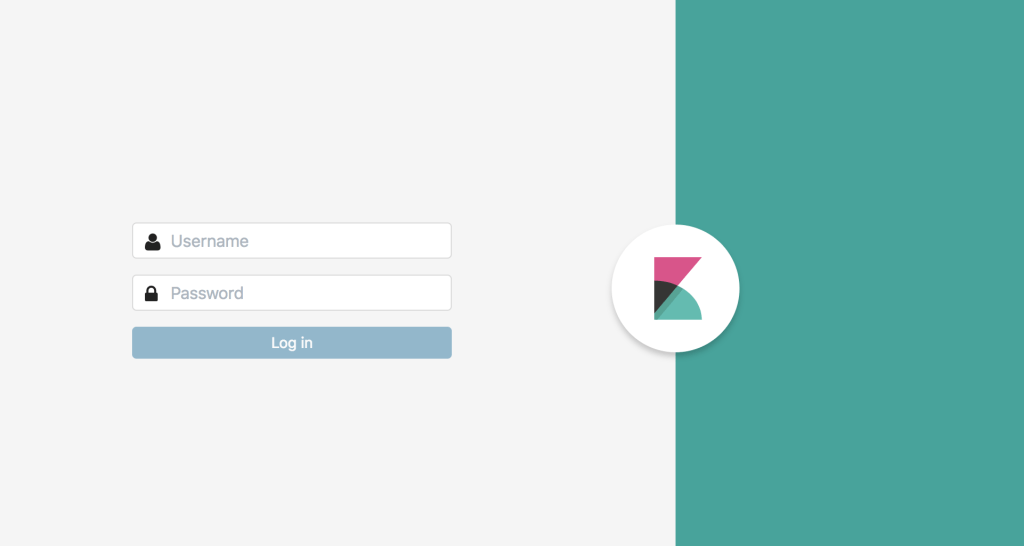

3.After finishing all the settings, you will see the login page
4.Enter the username/password which you set in kibana.yml, then you could login success
-
Wang
[Gatling] Customize your scripts based on scenario
Sometimes record function may not fulfill your requirement, in this case you need write scala script yourself according to gatling document.
Below is a simple sample to test two APIs: employee & health check
package me.hongmeng.stress.test import io.gatling.core.Predef._ import io.gatling.http.Predef._ class SimpleSimulation extends Simulation { val hostname = "http://localhost:8080" val httpProtocol = http .baseURL(hostname) .inferHtmlResources() .acceptHeader("*/*") .contentTypeHeader("application/json") .userAgentHeader("Gatling/2.3.1") val headers = Map("accept-encoding" -> "gzip, deflate", "cache-control" -> "no-cache") val employeeScenario = scenario("create_experiment_simulation") .exec( http("employee") .post("/v1/employees") .headers(headers) .body( StringBody("{"name": "xiaowang","major": "software"}") ) ) val healthScenario = scenario("health_simulation") .exec( http("health_check") .get("/actuator/health") .headers(headers) ) setUp( employeeScenario.inject(atOnceUsers(10)), healthScenario.inject(atOnceUsers(10)) ).protocols(httpProtocol) } -
Wang
[Gatling] Know about stress test tool
Gatling is kind of stress test tool to test your app’s performance, for detail infos, please refer to official document.
Next I will summurize how to install gatling on your Macbook.
1.Download gatling
wget https://repo1.maven.org/maven2/io/gatling/highcharts/gatling-charts-highcharts-bundle/2.3.1/gatling-charts-highcharts-bundle-2.3.1-bundle.zip
2.Unzip & Enter
unzip gatling-charts-highcharts-bundle-2.3.1-bundle.zip & cd gatling-charts-highcharts-bundle-2.3.1-bundle
3.Start record function
bin/record.sh

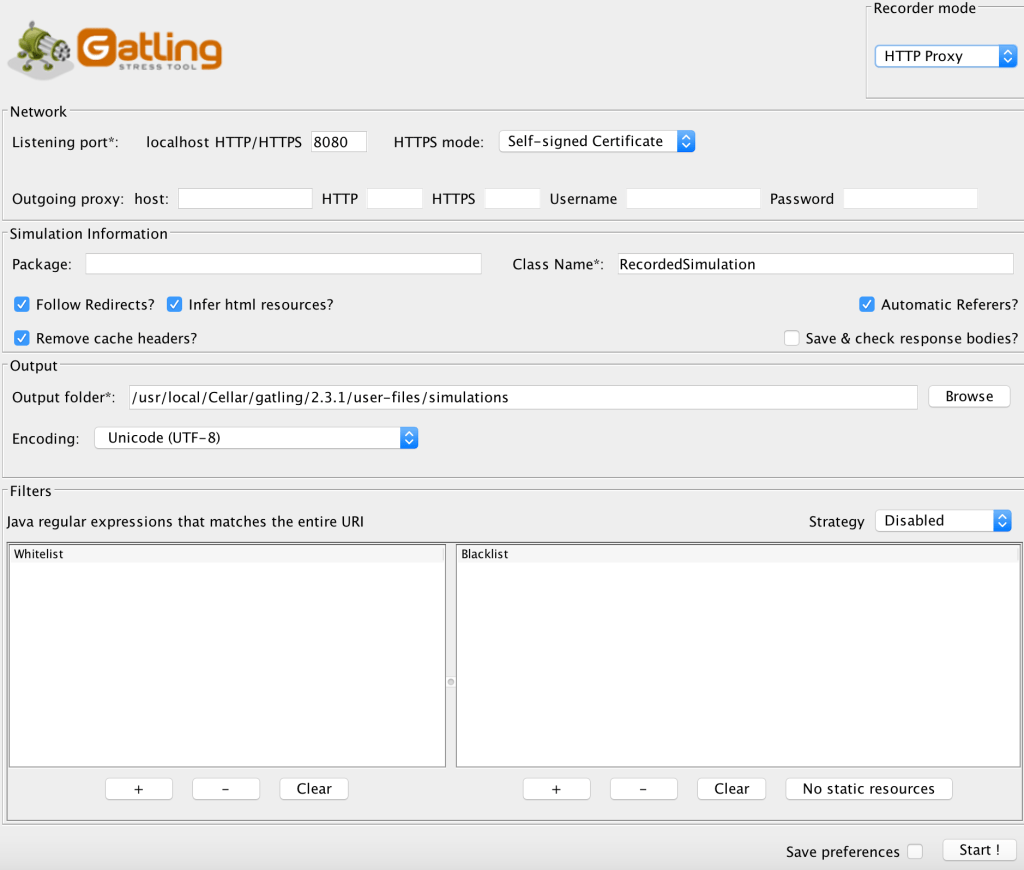

After starting record script, you could see the UI as below:

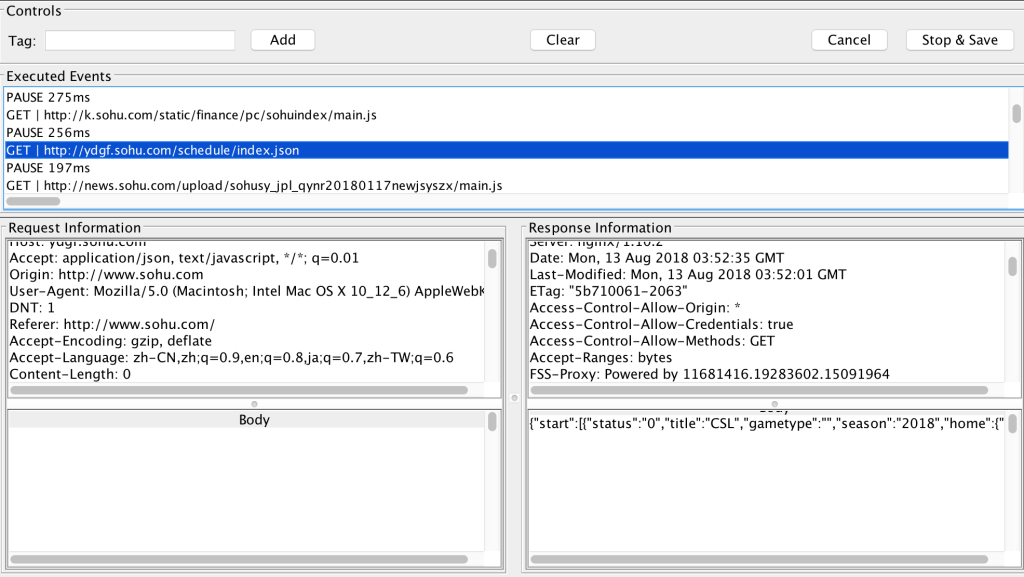

Please configure the proxy port and click Start button. Then you could set your browser proxy and surf the target URL, gatling will capture the content as below:
If you finished and wanna save the result, please click Stop & Save button, gatling will generate a new scala script which save all your behaviors just now, and the script will be under user-files/simulations/
xxx@xxx 2.3.1 $ ll user-files/simulations/ total 328 drwxr-xr-x@ 4 1154257814 80 136 Aug 13 11:30 . drwxr-xr-x@ 5 1154257814 80 170 Mar 6 22:59 .. -rw-r--r-- 1 1154257814 80 166657 Aug 13 11:54 RecordedSimulation.scala drwxr-xr-x@ 4 1154257814 80 136 Mar 6 22:59 computerdatabase
If you wanna change the generated file location, please modify outputFolder in conf/recorder.conf
hongmeng.wang@X0621 2.3.1 $ cat conf/recorder.conf recorder { core { className=RecordedSimulation encoding=utf-8 harFilePath="" headless=false mode=Proxy outputFolder="/usr/local/Cellar/gatling/2.3.1/user-files/simulations" package="" ... ...
