  Wang 22:12 on 2018-10-27 Permalink | Reply
  Tags: China ( 13 ), DaLian ( 9 ), Rakuten ( 5 ), Status ( 23 )

  Team Building!

















  Like this:

  Like Loading...


  Reply Cancel reply

  Name

  Email

  Website

  Notify me of new comments via email.

  Notify me of new posts via email.

  Δ

•

  Wang 22:30 on 2018-10-15 Permalink | Reply
  Tags: Cloud ( 26 ), Cluster ( 29 ), Docker ( 27 ), Domain ( 7 ), Kubernetes ( 37 )

  Jenkins pipeline & kubernetes

  We build deployment pipeline by Jenkins, Git, Maven, Docker, JFrog, Kubernetes, Slack, below is overall process:

  develop -> create branch -> push code -> git hook -> jenkins build -> code check -> unit test -> docker build -> push docker image -> deploy -> notificationa

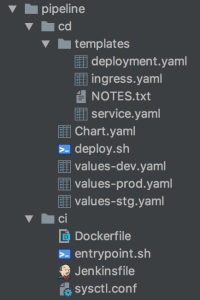

  For every project we generate pipeline scripts by JHipster like this:



  ci contains docker related scripts, cd contains kubernetes related scripts.

  We configured Jenkins to scan projects from git automatically which followed naming rule, if any changes on git, Jenkins will pull the code and start building.



  Like this:

  Like Loading...

•

  Wang 22:43 on 2018-10-08 Permalink | Reply
  Tags: API ( 18 ), Cloud ( 26 ), Cluster ( 29 ), Docker ( 27 ), Domain ( 7 ), Kubernetes ( 37 ), Restful ( 10 ), Spring Boot ( 10 )

  Nginx ingress in kubernetes

  There are 3 ways to expose your service: NodePort, LoadBalancer, Ingress, next I will introduce about how to use ingress.

  1.Deploy ingress controller

  You need deploy ingress controller at first which will start nginx pods, then nginx will bind domains and listen to the requests.

  I built a common ingress chart for different service, I only need change values-<service>.yaml and deploy script if any changes.



  Another key point is that you must be clear about ingress-class, different service use different ingress-class, it will be quite messy if you mistake them.

  args:
    - /nginx-ingress-controller
    - --default-backend-service=$(POD_NAMESPACE)/default-http-backend
    - --configmap=$(POD_NAMESPACE)/nginx-configuration
    - --tcp-services-configmap=$(POD_NAMESPACE)/tcp-services
    - --udp-services-configmap=$(POD_NAMESPACE)/udp-services
    - --ingress-class={{ .Values.server.namespace }}
    - --sort-backends=true


  2.Configure service ingress

  Next we need configure service ingress which will append nginx server configuration dynamically.

  I also built a service chart which include environment configurations, Jenkins & Helm will use different values-<env>.yaml when execute pipeline deployment.



  Ingress example:

  apiVersion: extensions/v1beta1
  kind: Ingress
  metadata:
    name: {{ .Values.app.name }}{{ .Values.deploy.subfix }}
    namespace: {{ .Values.app.namespace }}
    annotations:
      kubernetes.io/ingress.class: "{{ .Values.ingress.class }}"
      kubernetes.io/tls-acme: "true"
      nginx.ingress.kubernetes.io/enable-cors: "false"
      nginx.ingress.kubernetes.io/rewrite-target: /
      nginx.ingress.kubernetes.io/proxy-body-size: 10m
  spec:
    rules:
    - host: {{ .Values.ingress.hostname }}
      http:
        paths:
        - path: {{ .Values.ingress.path }}
          backend:
            serviceName: {{ .Values.app.name }}{{ .Values.deploy.subfix }}
            servicePort: {{ .Values.container.port }}
